Perry Thermostat For Perry Builtin Fan Coil Perry-1TITEF365-MC

Perry 1ti Tef365 Mc Module h 45 Mm Electronic Thermostat For Recessed Fan Coils Selector Est-off-winter Fan Speed Selector Stop-less-medium-speed Led Relay Status Indication 230v Ambient Thermostat In Promo

UNIVERS. INC. ELECTRIC THERM. FOR FAN-COIL

Price List

Eur. 99,17

Price MPCshop

Eur. 96,55

Not Available

For telephone information +39-02-21117815

All prices are VAT included

Bullet points Perry Perry-1TITEF365-MC

First bullet point Thermostat For Perry Builtin Fan Coil

Perry 1TI TEF365 MC recessed electronic thermostat MODULO H 45 mm series for FAN COIL
Second bullet point Thermostat For Perry Builtin Fan Coil

Thermostat for fan coil with WINTER Selector - OFF - SUMMER
Third bullet point Thermostat For Perry Builtin Fan Coil

Room thermostat with relay status indication
Fourth bullet point Thermostat For Perry Builtin Fan Coil

203V thermostat with fan speed selector: STOP - SLOW - MEDIUM - FAST
Fifth bullet point Thermostat For Perry Builtin Fan Coil

Perry thermostat with adjustment range 5 - 30°C

Perry 1ti Tef365 Mc Recessed Electronic Thermostat Modulo h 45 Mm Series For Fan Coil Estoffinv Control 3 Speed Control Led Relay Status Indication 230v Ac Power Supply 5060 Hz 1 Temperature Level Continuous Control 3 Front Panels

Customers Reviews Perry Perry-1TITEF365-MC

Vittorio

Data: September 11, 2020
Owner of an accommodation facility, I have been using this type of article for many years ... reliability and ease of use .... ideal for those like me who always have customers who are always so excited about air conditioning.

Electronic flush-mounted thermostat Perry 1TITEF365 MC MODULE H 45 mm series Thermostat for FAN COIL EAST/OFF/INV control 3 speed LEDs relay status indication Power supply 230V AC 50/60 Hz 1 temperature level continuous regulation 3 faceplates

PERRY THERMOSTAT CHARACTERISTICS
Output 1 polarized NO contact: 5(2)A/250VAC.
Proportional operation with fixed period
Environment thermostat SUMMER-WINTER command
SUMMER-WINTER command
Speed command I°, II° , III°
Temperature adjustment on a graduated scale with mechanical set-point index
Temperature levels 1 with continuous adjustment
Set-point with mechanical temperature lock
LED relay status indication
Adjustment range 5 - 30°C

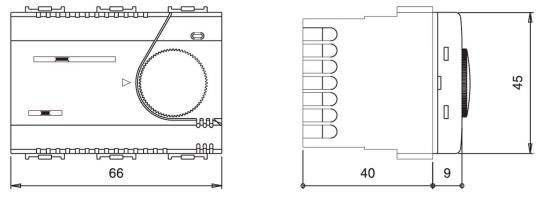

Size (WxDxH) 66 x 49 x 45 mm
TECHNICAL DATA
Power supply voltage: 230 V~ 50 ÷ 60 Hz
Type of action, disconnection and device: 1 / B / Electronic

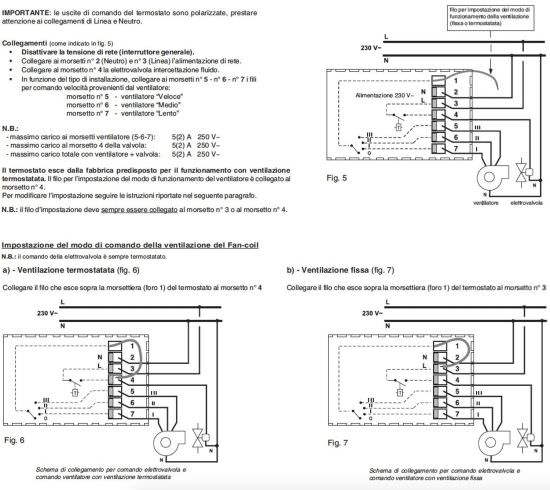

Type of output per type of control:
- fixed fan single pole polarized switch 5(2) A / 250 V~
- solenoid valve (thermostated) relay ON/OFF single pole polarized 5(2) A / 250 V~
- fan solenoid valve (thermostated) relay switch maximum total flow rate 5(2) A / 250 V~
section of wires at terminals: min. 0.75 mm2 - max. 2.5 mm2
Type of insulation: Class II
Degree of protection: IP 30
Pollution degree: normal
Regulating range: from 5 °C to 30 °C (limitable)
Thermal gradient: max 1K/10 min.
Type of regulation: proportional band (1°C amplitude)
reading accuracy: ± 1 °C
Operating temperature limits: 0 °C ÷ 50 °C
Energy classification ErP: Class I- 1% Reg. EU 811/2013
Reference regulations for CE marking LVD EN60730-2-9 EMC EN60730-2-9

PERFORMANCE DATA

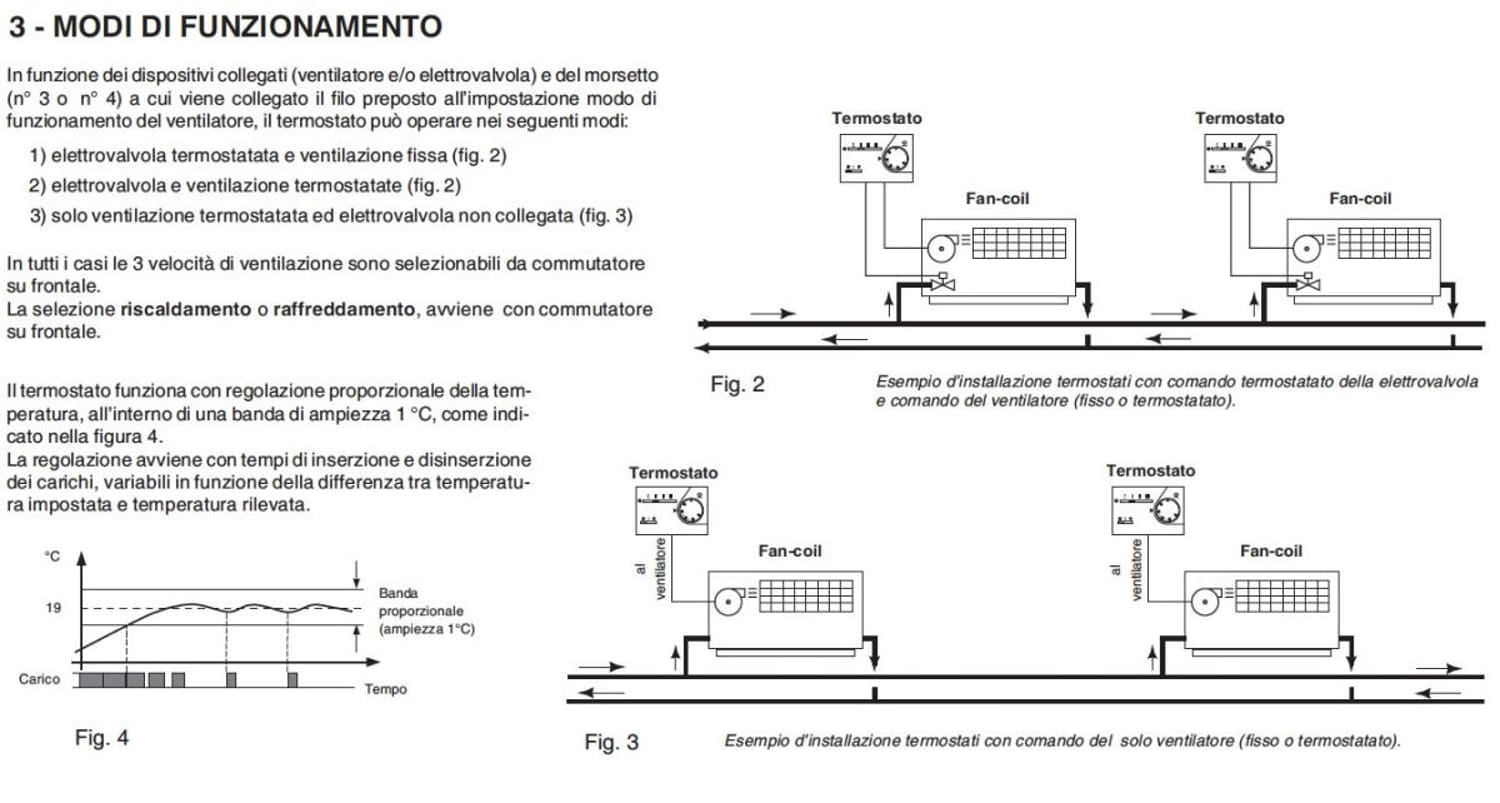

Operating mode: thermostatic solenoid valve and fixed ventilation - thermostatic solenoid valve and ventilation
Temperature set block: mechanical with "disk range" (supplied)
Light signals: Load indication LEDs on/off

FRONTAL FEATURES IN EQUIPMENT

ABB
Chiara

BTICINO
Light, LivingLight Bianca,
Light Tech, LivingLight Tech,
Living, LivingLight Antracite,
Matix,
Axolute Tech, Axolute Antracite, Axolute White

VIMAR
Plana, Plana Silver,
Eikon Grey,
Eikon Next,
Eikon White
Arké White
Arké Black

GEWISS
Chorus ONE/LUX/FLAT/GEO White
Chorus ONE/LUX/FLAT/GEO Black
Chorus ONE/LUX/FLAT/GEO Titanium

.

Perry Thermostat For Perry Builtin Fan Coil is a product on offer at the best price

Thermostat For Perry Builtin Fan Coil Perry-1TITEF365-MC

Perry 1ti Tef365 Mc Module h 45 Mm Electronic Thermostat For Recessed Fan Coils Selector Est-off-winter Fan Speed Selector Stop-less-medium-speed Led Relay Status Indication 230v Ambient Thermostat In Promo

UNIVERS. INC. ELECTRIC THERM. FOR FAN-COIL

Price List

Eur. 99,17

Price MPCshop

Eur. 96,55

Not Available

For telephone information +39-02-21117815

All prices are VAT included

Bullet points Perry Perry-1TITEF365-MC

Perry 1TI TEF365 MC recessed electronic thermostat MODULO H 45 mm series for FAN COIL
Second bullet point Thermostat For Perry Builtin Fan Coil

Thermostat for fan coil with WINTER Selector - OFF - SUMMER
Third bullet point Thermostat For Perry Builtin Fan Coil

Room thermostat with relay status indication
Fourth bullet point Thermostat For Perry Builtin Fan Coil

203V thermostat with fan speed selector: STOP - SLOW - MEDIUM - FAST
Fifth bullet point Thermostat For Perry Builtin Fan Coil

Perry thermostat with adjustment range 5 - 30°C

Data: 11 settembre 2020
Possessore di una struttura ricettiva utilizzo da molti anni questo tipo di articolo...affidabilità e semplicità di utilizzo .... ideali per chi come me ha sempre clienti che smanettono nell' aria condizionata

Termostato da incasso elettronico Perry 1TITEF365 MC serie MODULO H 45 mm Termostato per FAN COIL Comando EST/OFF/INV Comando 3 velocità LED indicazione stato relè Alimentazione 230V c.a. 50/60 Hz 1 livello di temperatura regolazione continua 3 frontalini

CARATTERISTICHE del termostato Perry
Uscita 1 contatto NA polarizzato: 5(2)A/250Vc.a.
Funzionamento proporzionale con periodo fisso
Termostato ambiente Comando ESTATE-OFF-INVERNO
Comando velocità I°, II° , III°
Regolazione temperatura su scala graduata con indice meccanico set-point
Livelli di temperatura 1 con regolazione continua
Set-point con blocco meccanico temperatura
LED indicazione stato relè
Campo di regolazione 5 - 30°C

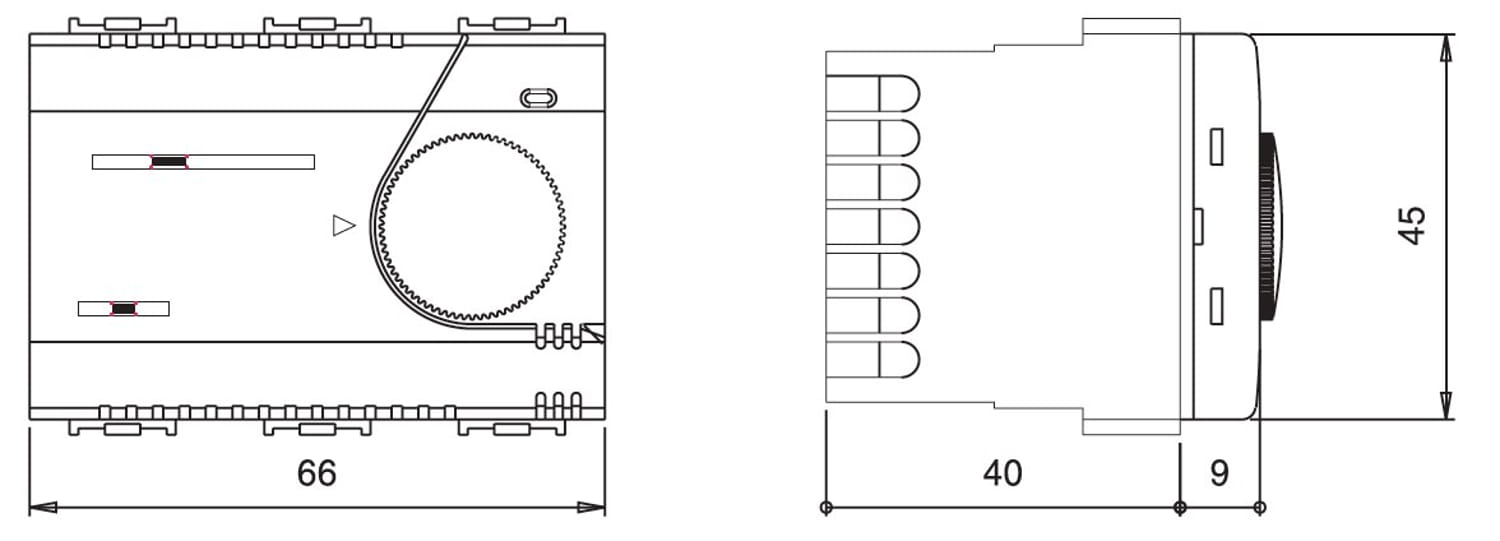

Dimensioni (LxPxH) 66 x 49 x 45 mm

DATI TECNICI
Tensione di alimentazione: 230 V~ 50 ÷ 60 Hz
Tipo di azione,disconnessione e apparecchio: 1 / B / Elettronico
Tipo di uscita per tipo di comando:
- ventilatore fisso commutatore unipolare polarizzato 5(2) A / 250 V~
- elettrovalvola (termostatata) relè ON/OFF unipolare polarizzato 5(2) A / 250 V~
- ventilatore + elettrovalvola (termostatati) relè + commutatore massima portata totale 5(2) A / 250 V~
Sezione dei fili ai morsetti: min. 0,75 mm2 - max. 2,5 mm2
Tipo di isolamento: Classe II
Grado di protezione: IP 30
Grado di inquinamento: normale
Campo di regolazione: da +5 °C a +30 °C (limitabile)
Gradiente termico: max 1K/10 min.
Tipo di regolazione: banda proporzionale (ampiezza 1°C)
Precisione di lettura: ± 1 °C
Limiti della temperatura di funzionamento: 0 °C ÷ + 50 °C
Classificazione energetica ErP: Class I- 1% Reg. EU 811/2013
Normative di riferimento per marcatura CE LVD EN60730-2-9 EMC EN60730-2-9

DATI PRESTAZIONALI
Modalità di funzionamento: elettrovalvola termostatata e ventilazione fissa - elettrovalvola e ventilazione termostatate
Blocco del set di temperatura: meccanico con "disco range" (in dotazione)
Segnalazioni luminose: Led di indicazione carico inserito/disinserito

COMPATIBILITA` FRONTALINI IN DOTAZIONE

ABB
Chiara

BTICINO
Light, LivingLight Bianca,
Light Tech, LivingLight Tech,
Living, LivingLight Antracite,
Matix,
Axolute Tech, Axolute Antracite, Axolute Bianca

VIMAR
Plana, Plana Silver,
Eikon Grigia,
Eikon Next,
Eikon Bianca
Arké Bianca
Arké Nera

GEWISS
Chorus ONE/LUX/FLAT/GEO Bianca
Chorus ONE/LUX/FLAT/GEO Nera
Chorus ONE/LUX/FLAT/GEO Titanio

Details Perry Perry-1TITEF365-MC
Power supply	230V c.a. 50-60Hz
Programming Type	EAST / OFF / INV command
Type Installation	Cash on delivery
Display Type	LED relay status indication - LED mains presence indication
Temperature levels	1 with continuous adjustment
Assembly	Cash on delivery
Setting range	5 - 30°C
Exit	5(2)A/250Vc.a.
How it works	Proportional with fixed period
Color	White
Measures	4,5x4,9x6,6
Weight	0
Barcode	8019108060504
Country of production	Italy
Vendor code	1TITEF365/MC
Comment	UNIVERS. INC. ELECTRIC THERM. FOR FAN-COIL
Brand	Perry

Manual

Accessories Perry Perry-1TITEF365-MC

DETAIL	Perry-1PAT004 T4 Frame Kit T4 Frame Kit	Eur. 6,86

DETAIL	Perry-1PAC001BL White Frame For Axolute Comp White Frame For Axolute Comp	Eur. 3,42

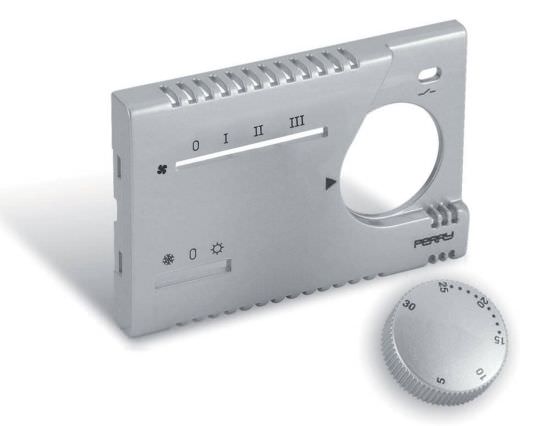

DETAIL	Perry-1PAFT365SL Tef365 Polished Silver Finish Tef365 Polished Silver Finish	Eur. 13,7

DETAIL	Perry-1PAFT365AV Finish Tef365 Anthrac Painted Finish Tef365 Anthrac. Painted	Eur. 13,7

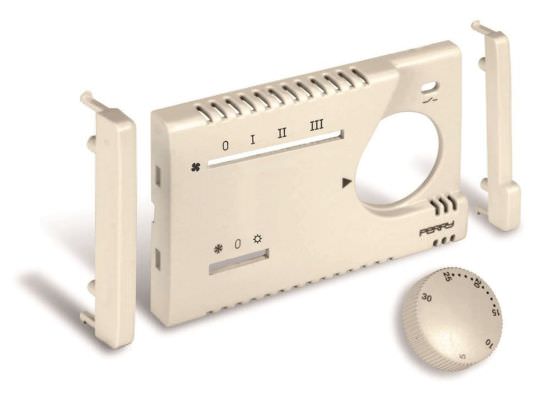

DETAIL	Perry-1PAFT365IP Tef365 White Finish Tef365 White Finish	Eur. 9,86
