Perry 1TXTETX03 3V electronic wireless thermostat with radio frequency output 868.35 MHz Temperature levels 1 direct 1 indirect Range between 30 and 130 meters EST/INV control 2 alkaline batteries 1.5V AAA Autonomy 12 months ON and LOW BAT indication
FORCE POINTS

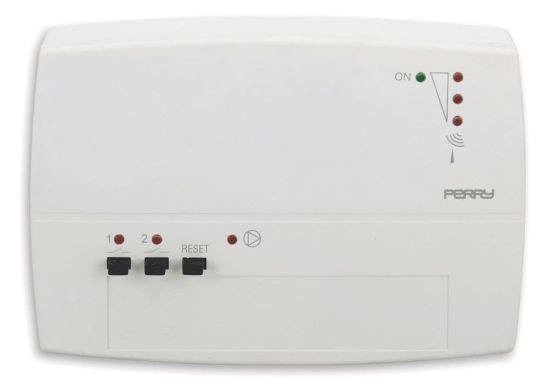

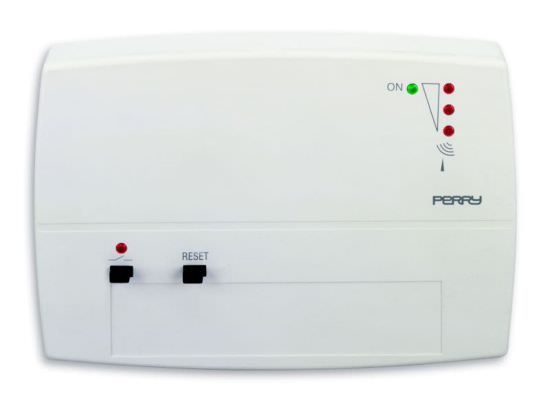

- Can be combined with wall mounted radio receivers: 1TX RX01/P, 1TXRX02/P, 1TX RX0801/P

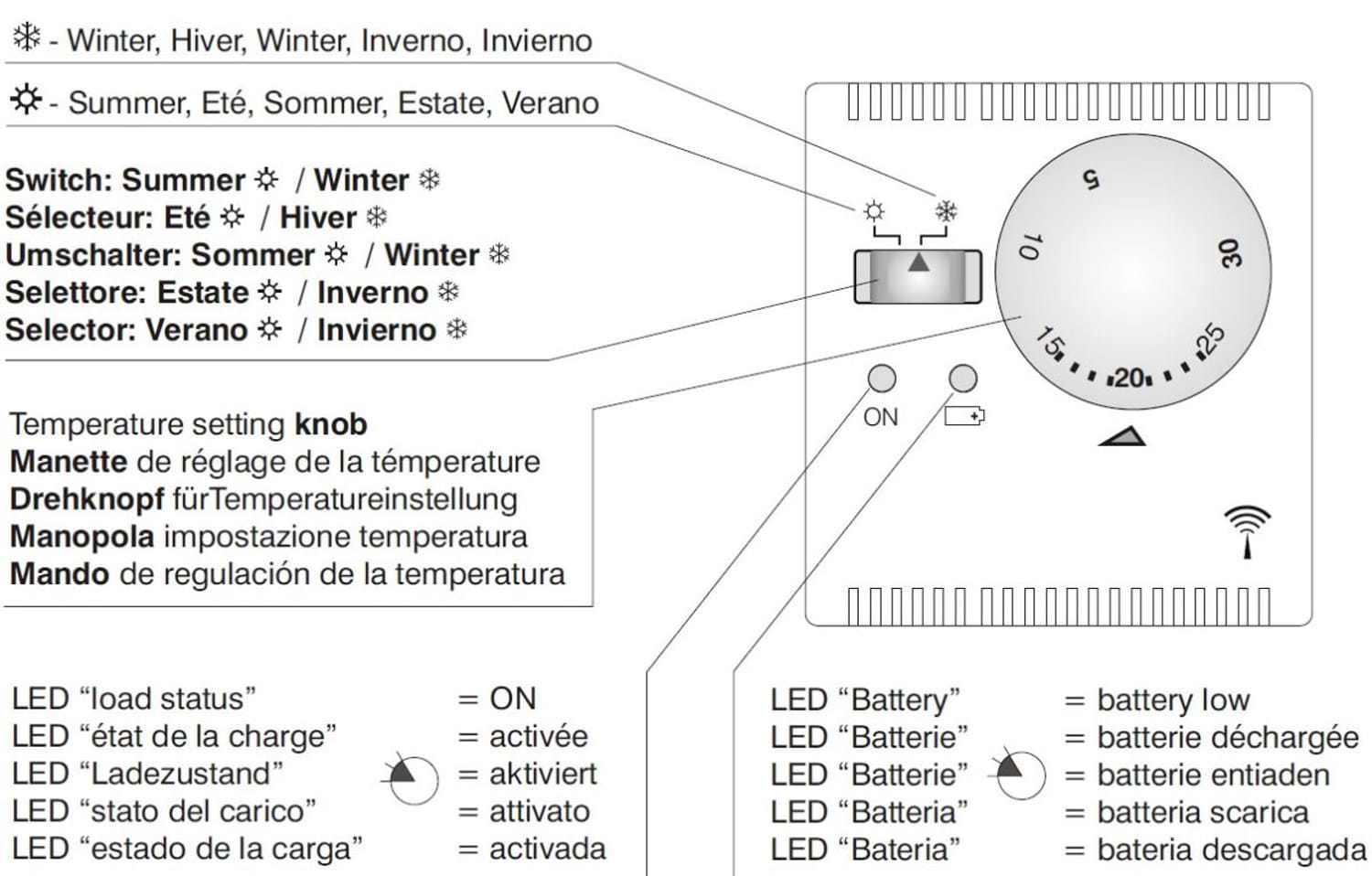

Features
Prepared for ON/OFF operation modulating in timedifferential adjustable from 0.2-0.6°C
Temperature levels 2: 1 direct 1 indirect
EAST/INV control
Autonomy 12 months
Indication status ON
Indication LOW BATTERY
Indication radio transmission

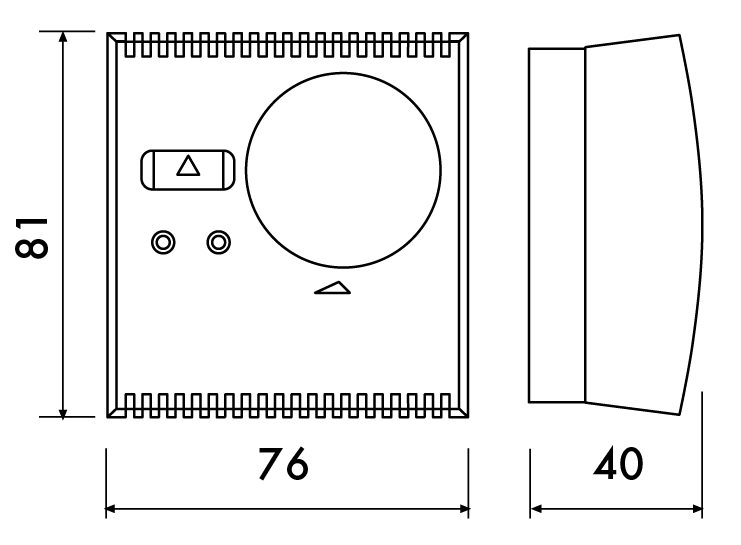

Size (WxDxH) 76 x 40 x 81 mm
Technical data
Power supply: no. 2 x 1.5 V AAA type AAA alkaline batteries (LR03) 1.5 V 1050 mA/h
Command output: via radio (to receiver actuator of the wireless temperature control family)
Antenna: integrated in the device
Transmission frequency (carrier): 868.35 MHz
Maximum signal range in free air: 120 m
Maximum signal range in the presence of walls: 30 m (in accordance with Chapter 1)
Type of insulation: Class III
Grade of protection: IP 30 / wall mounting
Pollution: normal
Limits of operating temperature: - 5 °C ÷ 55 °C
Limits of storage temperature: - 10 °C ÷ 65 °C
Autonomy of operation: Approx. 12 months
Autonomy from LED lighting
Low battery indicator: Approx. 15 days
Range of temperature setting: 5 °C to 30 °C
Resolution of temperature setting: /- 1 °C
Thermal gradient: max 1 °K/15 min.
Differential operation: delta T = 0.3 °C or delta T = 0.6 °C (selectable)
Reference standards: LVD EN 60 950-1
(R and TTE Directive 1999/5/EC) EMC EN 301 489-3 RADIO EN 300 220-3
Performance data
- Easy matching of transmitter to zone, with self-learning.
- Possibility of assignment to one or more receivers.
- Test signal to verify the presence and range of the radio signal.
- Operational safety is guaranteed by double transmission of information to the receiver.
Wireless thermostat Can be combined with radio wall receivers: 1TX RX01/P, 1TX RX02/P, 1TX RX0801/P
Data: 21 February 2020
