Perry Wireless chronothermostat for 3V boiler Perry-1TXCR028WIFI
Wireless chronothermostat for 3V boiler controlled directly from Smartphone with optional Smartbox Works with any type of system, floor with radiators or fan-coils Automatic suspension of operation when windows open Colour white
Wireless chronothermostat for boiler 4 KEYS 3VDC WHITE
Fully controllable by smartphone when combined with the optional smartbox Wifi clock thermostat with backlit LCD Perry chronothermostat with integrated PCB antenna, approximate range 200 m outdoors, approx. 30 m indoors Wall chronothermostat with non-volatile memory for saving settings Perry chronothermostat with operating mode: Heating (factory setting) / Cooling
Perry 3V wireless chronothermostat for 1TXCR028WIFI boiler controlled directly by Smartphone
Customers Reviews Perry Perry-1TXCR028WIFI
Data: 8 January 2020 Excellent wireless chronothermostat for boiler, purchased in combination with the smartbox, now control the boiler directly from the APP. Convenient I recommend it!
Wireless chronothermostat for 3V Perry 1TXCR028WIFI boiler controlled directly from Smartphone with Smartbox Works with any type of system (floor-standing, with radiators or fan-coil) Automatic suspension of operation when windows are opened White color
Main FEATURES
- Wireless connection to the Smartbox - Equipped with backlit LCD display with White-technology.LED - All-glass finish for a pleasant and modern design - Easily programmable via the APP available for both Android and iOS - Weekly programming - 3V battery power supply - Connects directly to the boiler
TECHNICAL CHARACTERISTICS of the wifi chronothermostat - 2x 1 battery power supply,5V alkaline type AA, autonomy over 2 years - backlit LCD - 4 keys, with lock option - Action type, disconnection and device: 1 / BU / Electronic. - Output type: relay with change-over contact COM / NO / NC, potential-free - max 5(3)A/250V~ - Wire section at terminals: 1.5 mm ÷ 2.5 mm 2 2 - Rated impulse voltage: 4 kV - Software: class A - Radio emission: the device intentionally emits radio waves on the frequency of 869.525 MHz, with a maximum power of 0.5mW e.r.p. - Integrated PCB antenna, approximate range 200 m outdoors, about 30 m indoors - Non-volatile memory to save settings - Temperature scale: ºC (Celsius) - Weekly programming, with 1 minute resolution, accuracy /- 1 minute - No. 10 programmable temperature levels per day - Temperature set setting: 0 ÷ 35 ºC, in steps of 0.5 ºC - Ambient temperature measurement: 0 ÷ 50 ºC, resolution 0.1 ºC, accuracy /- 0.5 °C - Operating temperature 0 ÷ 45 ºC - Storage temperature: -10 ºC ÷ 60 ºC - Temperature control mode: - Differential ON/OFF (factory setting) Hysteresis can be set to 0.2 °C / 0.4 °C / 0.8 °C / 1.6 °C - Proportional modulating PID settable 10 minutes / 15 minutes / 20 minutes / 25 minutes - ERP energy classification Reg. EU 811/2013: - in differential mode ON/OFF = ERP Class I 1% - in Proportional modulating mode = ERP Class IV 2% - Insulation class: Class II - Degree of protection: IP30 - Degree of pollution: Normal - Anti limescale pump (2 minutes to move the pump if not activated the previous week) - Operating mode: Heating (factory setting) / Cooling - OFFSET: 0.0 / 0.5 / 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0° C - Ball test temperature: terminals, printed circuit 125° C - 75° C casing
PARTICULAR NOTES Anti-scaling operation with pump control Low Battery warning
- Low Battery warning
Perry 3V wireless chronothermostat for boiler 1TXCR028WIFI Perry 1TXCR028WIFI
Wireless chronothermostat for 3V boiler Perry-1TXCR028WIFI
Wireless chronothermostat for 3V boiler controlled directly from Smartphone with optional Smartbox Works with any type of system, floor with radiators or fan-coils Automatic suspension of operation when windows open Colour white
Wireless chronothermostat for boiler 4 KEYS 3VDC WHITE
Fully controllable by smartphone when combined with the optional smartbox Wifi clock thermostat with backlit LCD Perry chronothermostat with integrated PCB antenna, approximate range 200 m outdoors, approx. 30 m indoors Wall chronothermostat with non-volatile memory for saving settings Perry chronothermostat with operating mode: Heating (factory setting) / Cooling
Data: 8 gennaio 2020 Ottimo cronotermostato wireless per caldaia, acquistato in combinazione con il smartbox, ora comando la caldaia direttamente dalla APP. Comodo lo consiglio!
Wireless chronothermostat for 3V Perry 1TXCR028WIFI boiler controlled directly from Smartphone with Smartbox Works with any type of system (floor-standing, with radiators or fan-coil) Automatic suspension of operation when windows are opened White color
Main FEATURES
- Wireless connection to the Smartbox - Equipped with backlit LCD display with White-technology.LED - All-glass finish for a pleasant and modern design - Easily programmable via the APP available for both Android and iOS - Weekly programming - 3V battery power supply - Connects directly to the boiler
TECHNICAL CHARACTERISTICS of the wifi chronothermostat - 2x 1 battery power supply,5V alkaline type AA, autonomy over 2 years - backlit LCD - 4 keys, with lock option - Action type, disconnection and device: 1 / BU / Electronic. - Output type: relay with change-over contact COM / NO / NC, potential-free - max 5(3)A/250V~ - Wire section at terminals: 1.5 mm ÷ 2.5 mm 2 2 - Rated impulse voltage: 4 kV - Software: class A - Radio emission: the device intentionally emits radio waves on the frequency of 869.525 MHz, with a maximum power of 0.5mW e.r.p. - Integrated PCB antenna, approximate range 200 m outdoors, about 30 m indoors - Non-volatile memory to save settings - Temperature scale: ºC (Celsius) - Weekly programming, with 1 minute resolution, accuracy /- 1 minute - No. 10 programmable temperature levels per day - Temperature set setting: 0 ÷ 35 ºC, in steps of 0.5 ºC - Ambient temperature measurement: 0 ÷ 50 ºC, resolution 0.1 ºC, accuracy /- 0.5 °C - Operating temperature 0 ÷ 45 ºC - Storage temperature: -10 ºC ÷ 60 ºC - Temperature control mode: - Differential ON/OFF (factory setting) Hysteresis can be set to 0.2 °C / 0.4 °C / 0.8 °C / 1.6 °C - Proportional modulating PID settable 10 minutes / 15 minutes / 20 minutes / 25 minutes - ERP energy classification Reg. EU 811/2013: - in differential mode ON/OFF = ERP Class I 1% - in Proportional modulating mode = ERP Class IV 2% - Insulation class: Class II - Degree of protection: IP30 - Degree of pollution: Normal - Anti limescale pump (2 minutes to move the pump if not activated the previous week) - Operating mode: Heating (factory setting) / Cooling - OFFSET: 0.0 / 0.5 / 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0° C - Ball test temperature: terminals, printed circuit 125° C - 75° C casing
PARTICULAR NOTES Anti-scaling operation with pump control Low Battery warning
- Low Battery warning
Perry 3V wireless chronothermostat for boiler 1TXCR028WIFI Perry 1TXCR028WIFI
Details Perry Perry-1TXCR028WIFI
Power supply
3V-2x1.5V AA (alkaline)
Programming Type
Weekly magazine
Type Installation
Wall

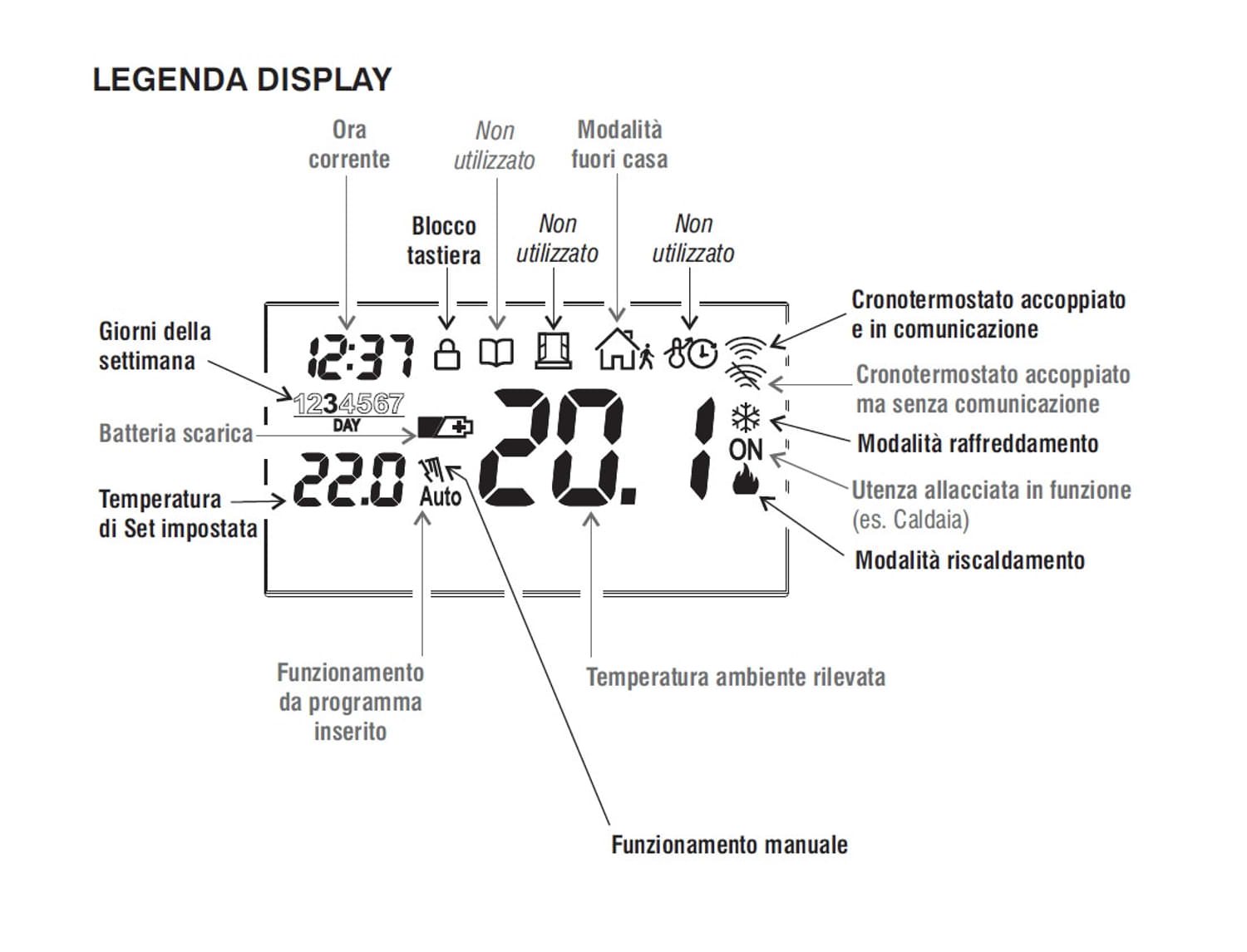

Display Type
LCD 4.3
Temperature levels
Up to 10 temperature levels per day
Minimum programming
1 minute
EAST / INV command
Yes
Assembly
Wall
Backlighting
Yes with
How it works
ON/OFF or modulating
Color
White

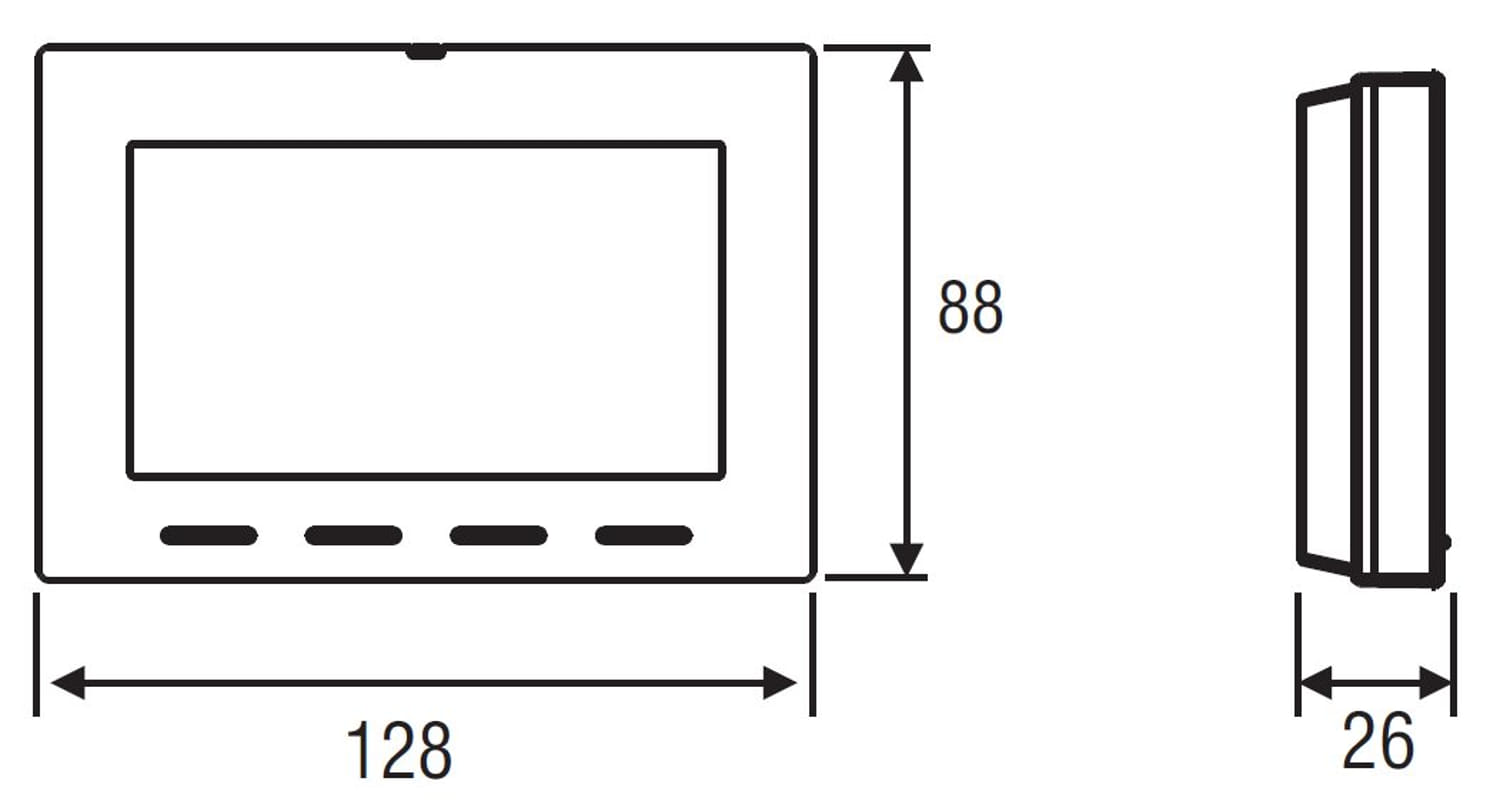

Measures
0
Weight
0
Barcode
8019108007332
Country of production
Italy
Vendor code
1TXCR028WIFI
End of promotion date
00:00:00
Comment
Wireless chronothermostat for boiler 4 KEYS 3VDC WHITE
