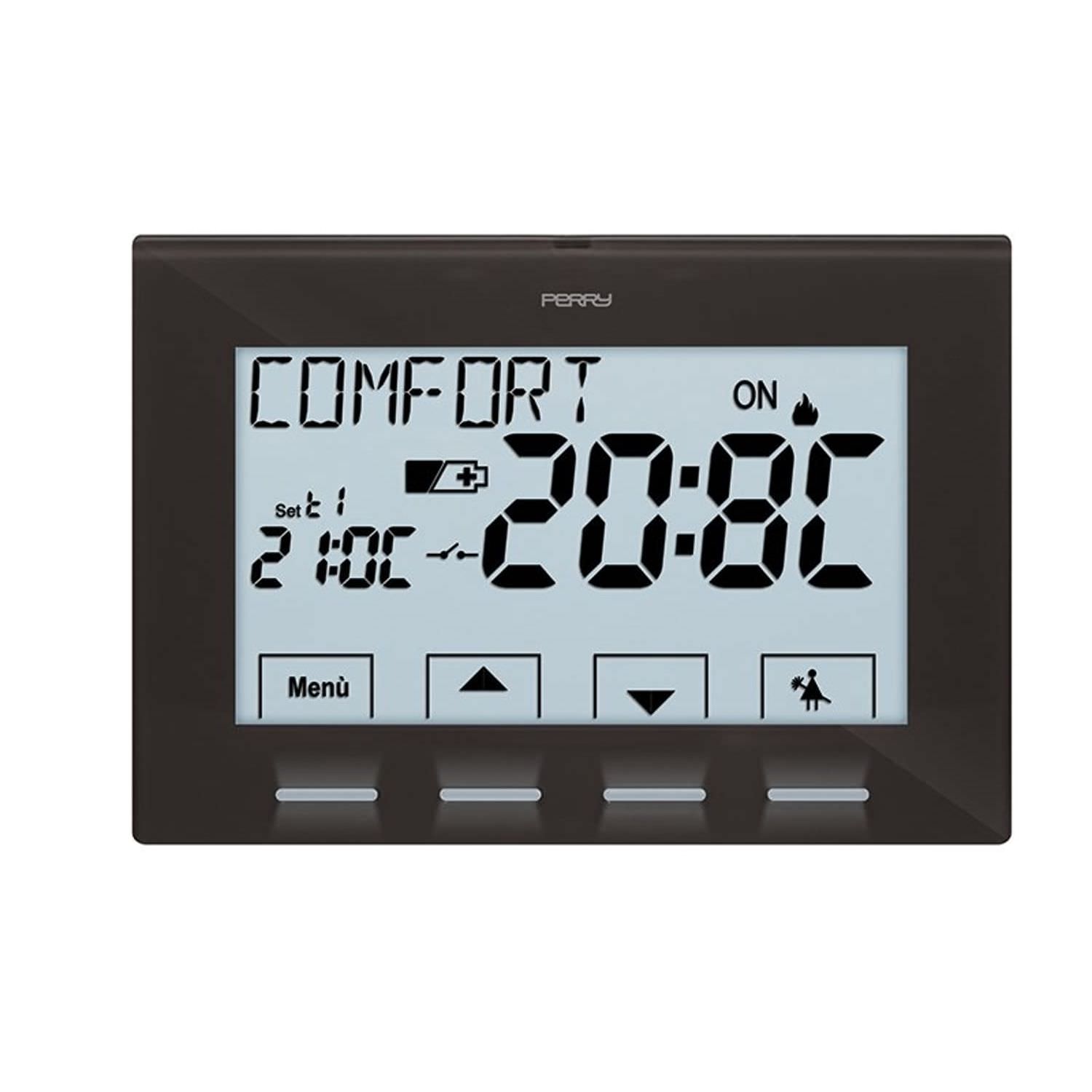

Perry Perry wall mounted boiler thermostat Perry-1TPTE028A

The battery operated thermostat is suitable for all heating and/or cooling systems, it is equipped with a clear backlit display to keep all its functions under control in real time. The ease of use through navigation amenù is the key feature, in fact, despite the completeness of its functions, is very easy to use. The thermostat, at the factory, adjusts the temperature in Differential ON/OFF mode and the hysteresis can be set from 0.2°C to 1.2°C to adapt to the thermal inertia of your specific system - alternatively it is possible to select the operation in Proportional modulating mode with adjustable duration cycles (from 7 to 20 minutes): this system allows to keep the desired temperature more stable, increasing the feeling of comfort for the user and is particularly suitable for systems with high thermal inertia such as, for example, for underfloor radiant panels. The factory set temperature scale is in Centigrade (Celsius) with the possibility to calibrate the room temperature measurement by setting a correction value (from -3 to 3 °C).
A separate remote temperature probe can be connected to the thermostat (optional) and then set it according to your system requirements: remote, floor, outdoor.
Special attention has been given to energy saving: the suspension of the temperature control for domestic cleaning, the optional block of the set set temperatures (MAX/MIN), the adjustable antifreeze temperature value, the control by means of an external contact (example telephone programmer as an option), allow to avoid energy waste with consequent economic saving
Main features of the electronic thermostat:

3V digital menu thermostat NEXT series anthracite color

Multilingual menu

3V - 2x1 power supply.5V AA alkaline

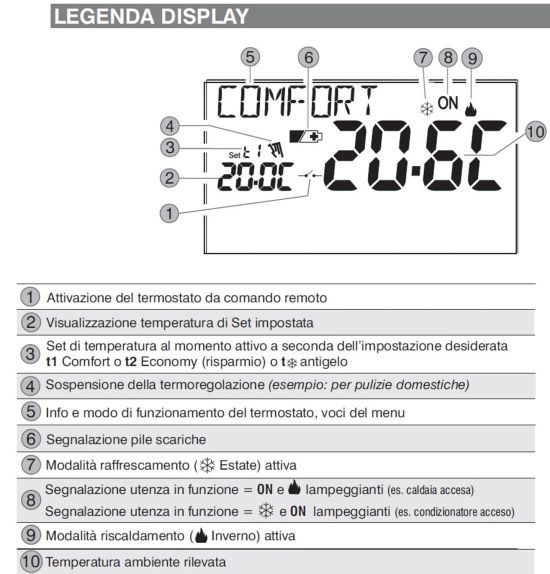

Lcd 4.3 backlit display

Backlit buttons

Potential-free deviation 1 contact output: 5(3)A/250VAC

On/Off operation with adjustable differential from 0.2 - 1.2°C or modulating with control period from 7 - 20 min

Temperature level 2 antifreeze

Adjustable temperature for set of 0.1°C

Suspension button for cleaning

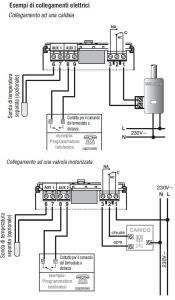

Telephone or remote control input

Remote probe input

EAST/INV control

Pump activation program

Temperature set block


Password user

Installer password

Timed backlighting

Relay status indication

Correction t detection in function product positioning

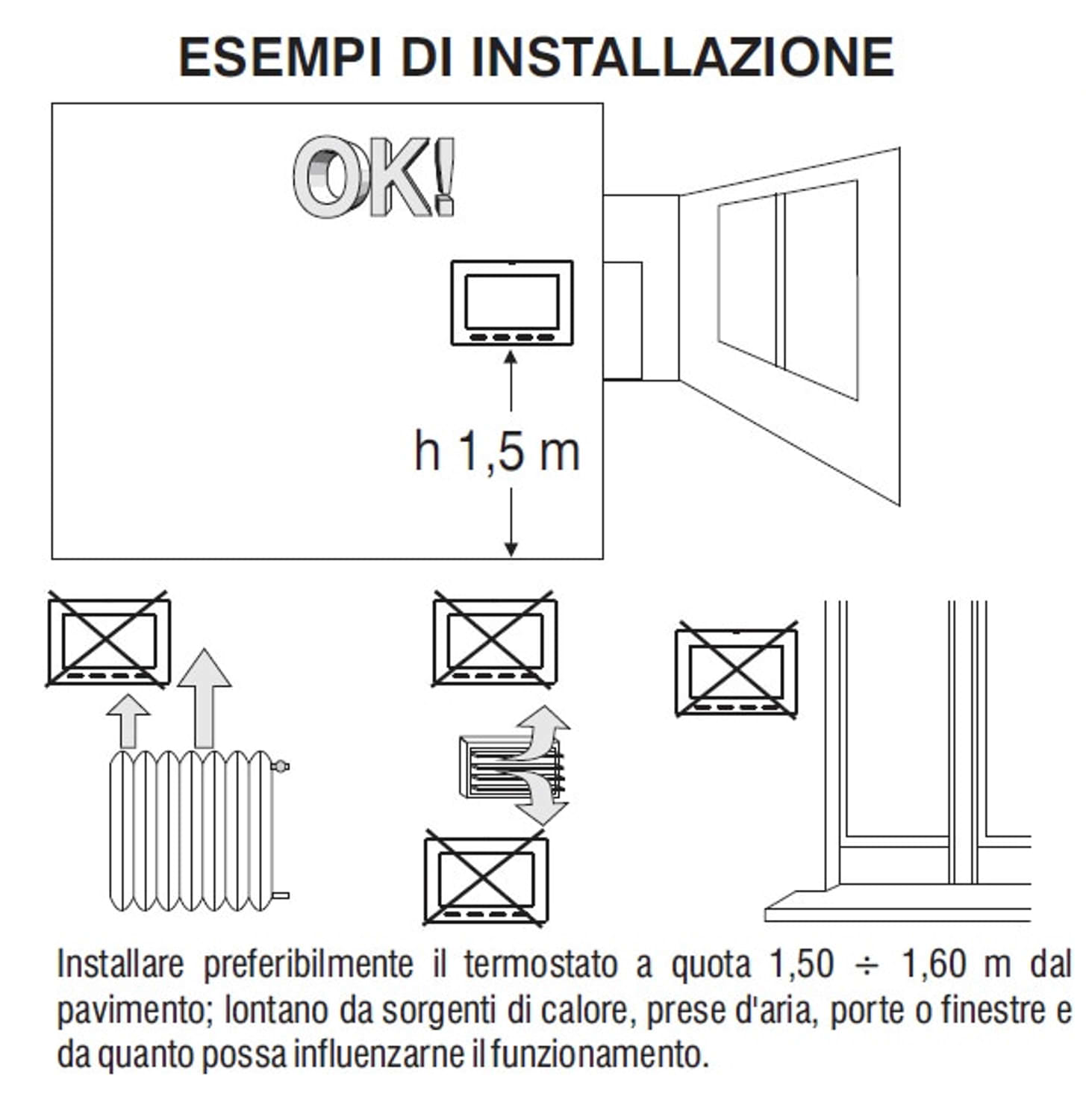

Wall mounting

Adjustment range 5 - 37.7°C

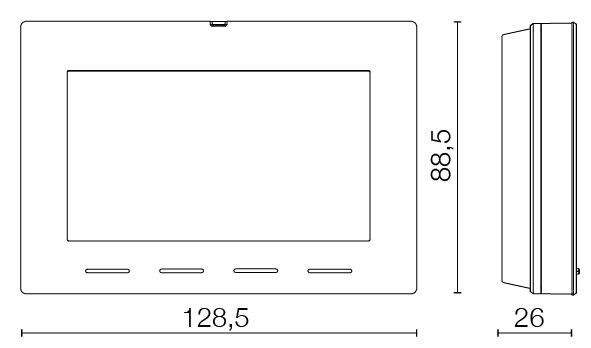

Dimensions (WxDxH) 128.5 x 88.5 x 26 mm

Programming convenience
All setting operations can be carried out before attaching the thermostat to the wall base - this allows settings to be made from the comfort of your seat. Flashing ON with winter or fixed summer symbol and NO RELAY indicates that the thermostat is detached or not firmly attached to the wall base.



.
