Perry Builtin chronothermostat 230V Perry Perry-1CRCDS29
Chronothermostat for flush-mounting weekly 230V power supply Soft Touch backlit display, 3 temperature levels 4 preset programs Cleaning suspension key Three front panels included in the package Chronothermostat in special offer Perry
UNIV NEXT 230V BUILT-IN CHRONOTERMOST
Price List
€ 161,04
Price MPCshop
€ 97,94
Available
163 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1CRCDS29
Built-in chronothermostat menu 230V series \ Flush-mounted chronothermostat ON/OFF operation with adjustable differential from 0.2 - 1.2°C or modulating with control period from 7-20 minutes Flush-mounted chronothermostat with 4 preset programs that can be modified Flush-mounted chronothermostat Adjustable temperature for set of 0.1°C Suspension key for cleaning
Perry 1CRCDS29 Chronothermostat for weekly built-in 230V power supply with display, White
built-in chronothermostat perry 230v soft touch weekly cleaning suspension button operation on off menu multilanguage
Customers Reviews Perry Perry-1CRCDS29
Data: 12 December 2017 Great built-in chronothermostat I ordered this chronothermostat to replace a manual one of the same brand. Easy installation thanks to the supplied front panels and adapters. Simple programming, allows you to change the temperature in steps of 0.1 degrees and with variations of 30 minutes. It has 3 presets of temperatures and times that can be modified at will. Very convenient cleaning function: allows you to temporarily turn off the heating while you have doors and windows open. It also has the mode for summer, so for cooling. Timed or fixed LED lighting. Product recommended for its technical characteristics and attractive appearance.
Data: 2 December 2016 It is an excellent chronothermostat that is easy to install, precise and the programming is intuitive thanks to the simple graphics. It has very appreciable functions such as the possibility of interfacing to an external aux line (for remote control) as well as the automatic switch to summer time and backlighting as well as the possibility of choosing 4 different masks depending on the fruits present in the house. These features combined with a highly competitive price make it an absolutely recommended product.
Data: 2 October 2019 Chronothermostat of excellent workmanship for 230V operation. Comes with 3 masks in white, black and silver. It does not include the closing plate (such as Vimar, BTicno etc..) which, in my case, I have combined with the existing ones on the lighting controls.
Built-in chronothermostat 230V Soft Touch series power supply, backlit display, 3 antifreeze level temperatures, 4 preset programs that can be modified, cleaning suspension button Equipped with three front panels included in the package Weekly built-in 230V power supply chronothermostat The Perry 1CRCDS29 special offer chronothermostat is a soft touch chronothermostat
Force points of the built-in 230V chronothermostat - Multilingual menu - Power supply 230V 50-60Hz - Backlit LCD display - Equipped with three front panels included in the package - User and installer password - Anti-scale cycle: with the pump activation function, the chronothermostat automatically starts the pump or valve device for two minutes every day, even during periods of suspension, to avoid incrustations and seizures possible after prolonged inactivity. In this way, any risk is eliminated when the system is reactivated - Eco operation: the chronothermostat anticipates shutdown by exploiting the thermal inertia of the plant, allowing a considerable saving of energy - Cleaning suspension button: it allows to stop, for a preset time, the operation of the system. Without waste and in all simplicity, just press the button with the cleaning suspension symbol and on the screen the segments disappear in correspondence of the two hours starting from the current one: system off - Temperature set block: for systems intended for second homes, public environments, hotels, offices, as well as the domestic environment, where it is necessary to set the minimum and maximum temperatures for the thermoregulation of the rooms to avoid heat theft (minimum temperature) and/or heat waste (maximum temperature) - Holiday program: for those who are away from home for several days, there are Countdown or Weekend functions that suspend the operation of the chronothermostat for a preset period of time, keeping the temperature at antifreeze level
Characteristics of the Perry chronothermostat Multilingual menu 230V power supply Lcd backlit display Potential-free deviation 1 contact output: 5(3)A/250Vc.a. On/Off operation with differential adjustable from 0.2 - 1.2°C or modulating with control period from 7-20 min4 preset programs that can be modified Temperature levels 3 antifreeze Automatic manual temperature Adjustable temperature for set of 0.1°C Minimum programming time of 30 minutes Permanent / temporary manual operation Automatic daylight saving time change Suspension key for cleaning Telephone or remote control input Probe input (CDS28 only) EAST/INV control Holiday program Pump activation program Blocking temperature set User password Installer password Timed or fixed backlighting Relay status indication Correction t detection in operation

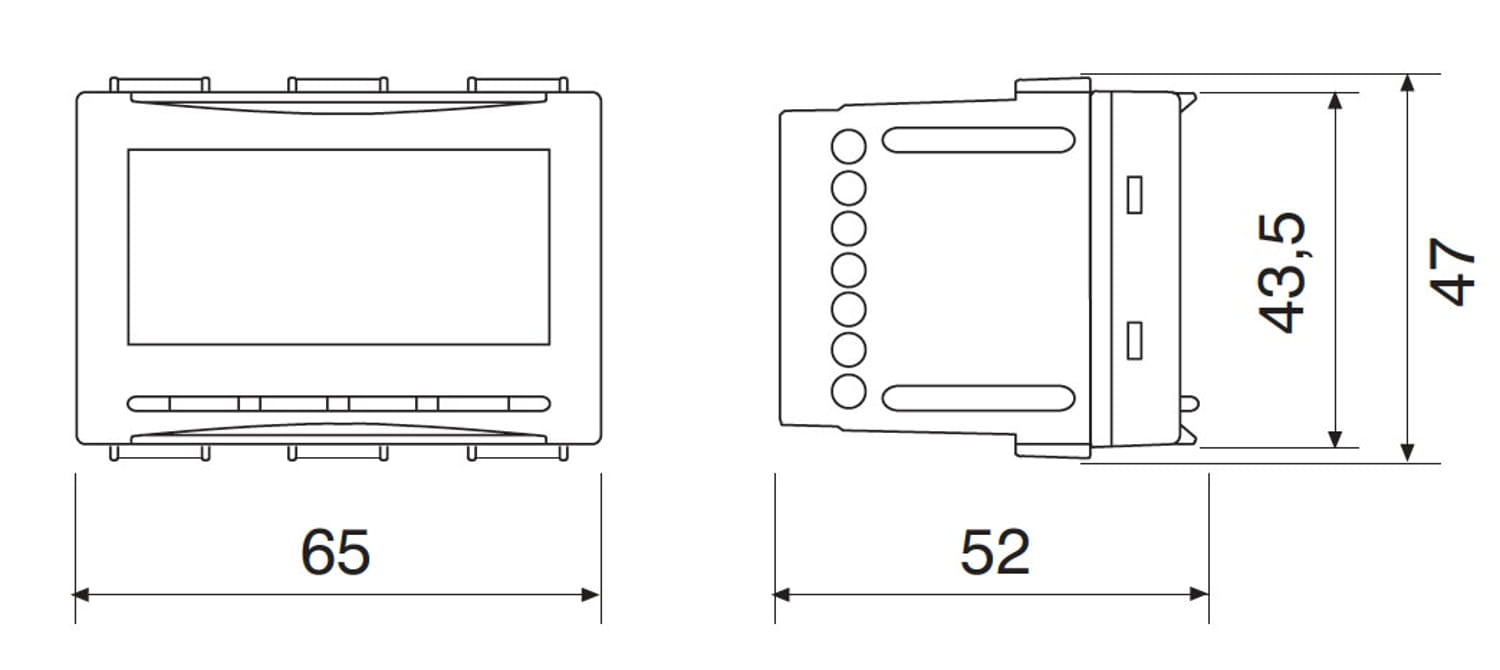

Product positioning Flush mount Size (WxDxH) 65 x 53 x 47 mm
Technical features: Power supply: 230V 50-60 Hz White backlighting of the display: timed 6 sec. / always on / always off Type of action, disconnection and device: 1 / B / U / Electronic Output type: relay with changeover contact COM / NO / NC, potential-free - max 5(3)A/250 V Minimum buffer battery charging time 72 hours minimum Maintain settings in case of blackout 72 hours minimum Software: class A Rated pulse voltage: 4 kV Wire section at terminals: 1.5 mm ÷ 2.5 mm Contact input for potential-free contact, minimum insulation 250V~
Isolation type: class II Protection degree: IP30 Pollution degree: normal Number of temperature levels: No. 3 " comfort", "activity" (pre-comfort), "economy" antifreeze Environmental temperature display scale: - 5.0 °C ÷ 37.7 °C ( 23 °F ÷ 99.9 °F) Relay signalling ON: ON (winter) or ON (summer) flashing Resolution of ambient temperature indicator: 0.1 °C (0.1 °F) Reg. set temperature range (t1/t2/t3): 5 °C ÷ 37.7 °C ( 41.0 °F ÷ 99.9 °F) limitable Setting Temperature set: in steps of 0.1 °C / 0.1 °F Temperature correction (Offset): adjustable from -3.0 °C (5.4°F) to 3.0 °C (5.4°F) default 0.0 °C/0.0 °F Antifreeze temperature (t ): adjustable 5 °C ÷ Temperature adjustment mode: - DIFFERENTIAL ON/OFF (default) adjustable from 0.2 °C to 1.2 °C (from 0.3 °F to 2.1 °F) default 0.3 °C (0.4°F) - PROPORTIONAL MODULATING cycles duration adjustable from 7 to 20 minutes (default 10 minutes) Thermal gradient: max 1°K / 15 min Temperature reading tolerance: ± 0.5°C (± 0.9°F) Operating temperature limits: 0 °C ÷ 45 °C Storage temperature limits: -10 °C ÷ 60 °C Reference regulations for CE marking: LVD - EMC EN60730-2-7 EN60730-2-9
With the three faceplates supplied in the package, the products are dimensionally and chromatically compatible with the series plates:
Chronothermostat for flush-mounting weekly 230V power supply Soft Touch backlit display, 3 temperature levels 4 preset programs Cleaning suspension key Three front panels included in the package Chronothermostat in special offer Perry
UNIV NEXT 230V BUILT-IN CHRONOTERMOST
Price MPCshop
€ 97,94
Available
163 Pcs Estimated Delivery in 5 working days
All prices are VAT included
Bullet points Perry Perry-1CRCDS29
Built-in chronothermostat menu 230V series \ Flush-mounted chronothermostat ON/OFF operation with adjustable differential from 0.2 - 1.2°C or modulating with control period from 7-20 minutes Flush-mounted chronothermostat with 4 preset programs that can be modified Flush-mounted chronothermostat Adjustable temperature for set of 0.1°C Suspension key for cleaning
Data: 12 dicembre 2017 Gran bel cronotermostato da incasso Ho ordinato questo cronotermostato per sostituirne uno manuale della stessa marca. Installazione semplice grazie ai frontalini ed agli adattatori in dotazione. Programmazione semplice, consente di modificare la temperatura a step di 0,1 gradi e con variazioni di 30 minuti. Ha 3 preset di temperature ed orari che però possono essere modificati a piacimento. Funzione pulizie comodissima: consente di disattivare temporaneamente il riscaldamento mentre si hanno porte e finestre aperte. Ha anche la modalità per l’estate, quindi per il raffrescamento. Illuminazione a led temporizzata o fissa. Prodotto consigliato per le caratteristiche tecniche e l’estetica accattivante.
Data: 2 dicembre 2016 E' un ottimo cronotermostato di facile installazione, preciso e la programmazione è intuitiva grazie anche alla grafica semplice. Ha funzioni molto apprezzabili quali la possibilità di interfacciarsi ad una linea aux esterna (per il controllo da remoto) nonché il passaggio automatico all'ora legale e la retroilluminazione oltre alla possibilità di scegliere 4 diverse mascherine a seconda dei frutti presenti in abitazione. Caratteristiche queste che abbinate ad un prezzo altamente concorrenziale lo rendono un prodotto assolutamente consigliato.
Data: 2 ottobre 2019 Cronotermostato di ottima fattura per funzionamento a 230V. Viene fornito con 3 mascherine di color bianco, nero e argento. Non e' compresa la placca di chiusura (tipo Vimar, BTicno ecc.) che , nel mio caso, ho abbinato a quelle esistenti sui comandi di accensione luci.
Built-in chronothermostat 230V Soft Touch series power supply, backlit display, 3 antifreeze level temperatures, 4 preset programs that can be modified, cleaning suspension button Equipped with three front panels included in the package Weekly built-in 230V power supply chronothermostat The Perry 1CRCDS29 special offer chronothermostat is a soft touch chronothermostat
Force points of the built-in 230V chronothermostat - Multilingual menu - Power supply 230V 50-60Hz - Backlit LCD display - Equipped with three front panels included in the package - User and installer password - Anti-scale cycle: with the pump activation function, the chronothermostat automatically starts the pump or valve device for two minutes every day, even during periods of suspension, to avoid incrustations and seizures possible after prolonged inactivity. In this way, any risk is eliminated when the system is reactivated - Eco operation: the chronothermostat anticipates shutdown by exploiting the thermal inertia of the plant, allowing a considerable saving of energy - Cleaning suspension button: it allows to stop, for a preset time, the operation of the system. Without waste and in all simplicity, just press the button with the cleaning suspension symbol and on the screen the segments disappear in correspondence of the two hours starting from the current one: system off - Temperature set block: for systems intended for second homes, public environments, hotels, offices, as well as the domestic environment, where it is necessary to set the minimum and maximum temperatures for the thermoregulation of the rooms to avoid heat theft (minimum temperature) and/or heat waste (maximum temperature) - Holiday program: for those who are away from home for several days, there are Countdown or Weekend functions that suspend the operation of the chronothermostat for a preset period of time, keeping the temperature at antifreeze level
Characteristics of the Perry chronothermostat Multilingual menu 230V power supply Lcd backlit display Potential-free deviation 1 contact output: 5(3)A/250Vc.a. On/Off operation with differential adjustable from 0.2 - 1.2°C or modulating with control period from 7-20 min4 preset programs that can be modified Temperature levels 3 antifreeze Automatic manual temperature Adjustable temperature for set of 0.1°C Minimum programming time of 30 minutes Permanent / temporary manual operation Automatic daylight saving time change Suspension key for cleaning Telephone or remote control input Probe input (CDS28 only) EAST/INV control Holiday program Pump activation program Blocking temperature set User password Installer password Timed or fixed backlighting Relay status indication Correction t detection in operation
Product positioning Flush mount Size (WxDxH) 65 x 53 x 47 mm
Technical features: Power supply: 230V 50-60 Hz White backlighting of the display: timed 6 sec. / always on / always off Type of action, disconnection and device: 1 / B / U / Electronic Output type: relay with changeover contact COM / NO / NC, potential-free - max 5(3)A/250 V Minimum buffer battery charging time 72 hours minimum Maintain settings in case of blackout 72 hours minimum Software: class A Rated pulse voltage: 4 kV Wire section at terminals: 1.5 mm ÷ 2.5 mm Contact input for potential-free contact, minimum insulation 250V~
Isolation type: class II Protection degree: IP30 Pollution degree: normal Number of temperature levels: No. 3 " comfort", "activity" (pre-comfort), "economy" antifreeze Environmental temperature display scale: - 5.0 °C ÷ 37.7 °C ( 23 °F ÷ 99.9 °F) Relay signalling ON: ON (winter) or ON (summer) flashing Resolution of ambient temperature indicator: 0.1 °C (0.1 °F) Reg. set temperature range (t1/t2/t3): 5 °C ÷ 37.7 °C ( 41.0 °F ÷ 99.9 °F) limitable Setting Temperature set: in steps of 0.1 °C / 0.1 °F Temperature correction (Offset): adjustable from -3.0 °C (5.4°F) to 3.0 °C (5.4°F) default 0.0 °C/0.0 °F Antifreeze temperature (t ): adjustable 5 °C ÷ Temperature adjustment mode: - DIFFERENTIAL ON/OFF (default) adjustable from 0.2 °C to 1.2 °C (from 0.3 °F to 2.1 °F) default 0.3 °C (0.4°F) - PROPORTIONAL MODULATING cycles duration adjustable from 7 to 20 minutes (default 10 minutes) Thermal gradient: max 1°K / 15 min Temperature reading tolerance: ± 0.5°C (± 0.9°F) Operating temperature limits: 0 °C ÷ 45 °C Storage temperature limits: -10 °C ÷ 60 °C Reference regulations for CE marking: LVD - EMC EN60730-2-7 EN60730-2-9
With the three faceplates supplied in the package, the products are dimensionally and chromatically compatible with the series plates:
GEWISS Chorus ONE/LUX/FLAT/GEO White Chorus ONE/LUX/FLAT/GEO Black Chorus ONE/LUX/FLAT/GEO Titanium
VIMAR Plana, Plana Silver, Eikon Grey, Eikon Next, Eikon White Arké White Arké Black
Built-in clock thermostat weekly 230V Perry 1CRCDS29 Perry 1CRCDS29
Details Perry Perry-1CRCDS29
Power supply
230V c.a. 50/60Hz
Programming Type
Weekly magazine
Type Installation
Cash on delivery
Display Type
Lcd backlit
Temperature levels
3 + antifreeze
Minimum programming
30 minutes
Automatic daylight saving time changeover
Yes
Suspension button for cleaning
Yes
EAST / INV command
Yes
Holiday Program
Yes
Pump activation program
Yes
Telephone or remote control input
Yes
User and installer password
Yes
Assembly
Cash on delivery
Setting range
5 - 37,7°C
Exit
5(3)A/250Vc.a.
Backlighting
Timed or fixed
How it works
Manual / Permanent / Temporary
Temperature blocking
Yes
Color
White
Measures
4,7x5,3x6,5
Weight
0
Barcode
8019108090983
Country of production
Italy
Vendor code
1CRCDS29
End of promotion date
31/12/2023
Comment
UNIV NEXT 230V BUILT-IN CHRONOTERMOST
Brand
Perry
CUSTOMER QUESTIONS AND ANSWERS
Question:
how can I stop the heating when there are windows open in the house?
Reply:
The chronothermostat is equipped with the convenient cleaning function, which allows you to temporarily turn off the heating while you have doors and windows open. For example, when cleaning the apartment. 30/06/2019 17:23:46
