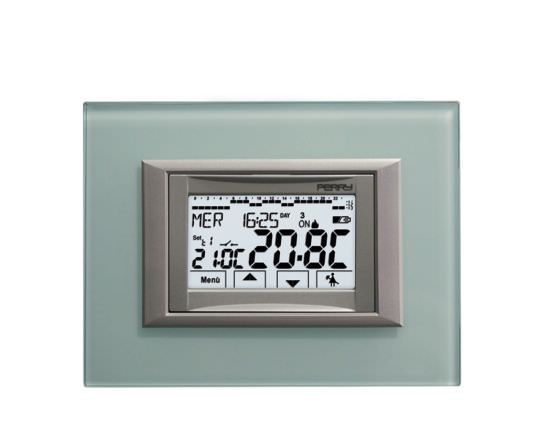

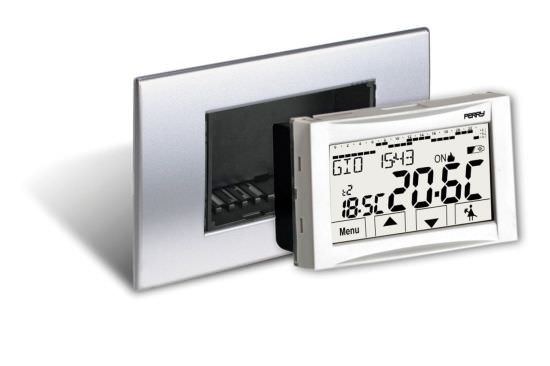

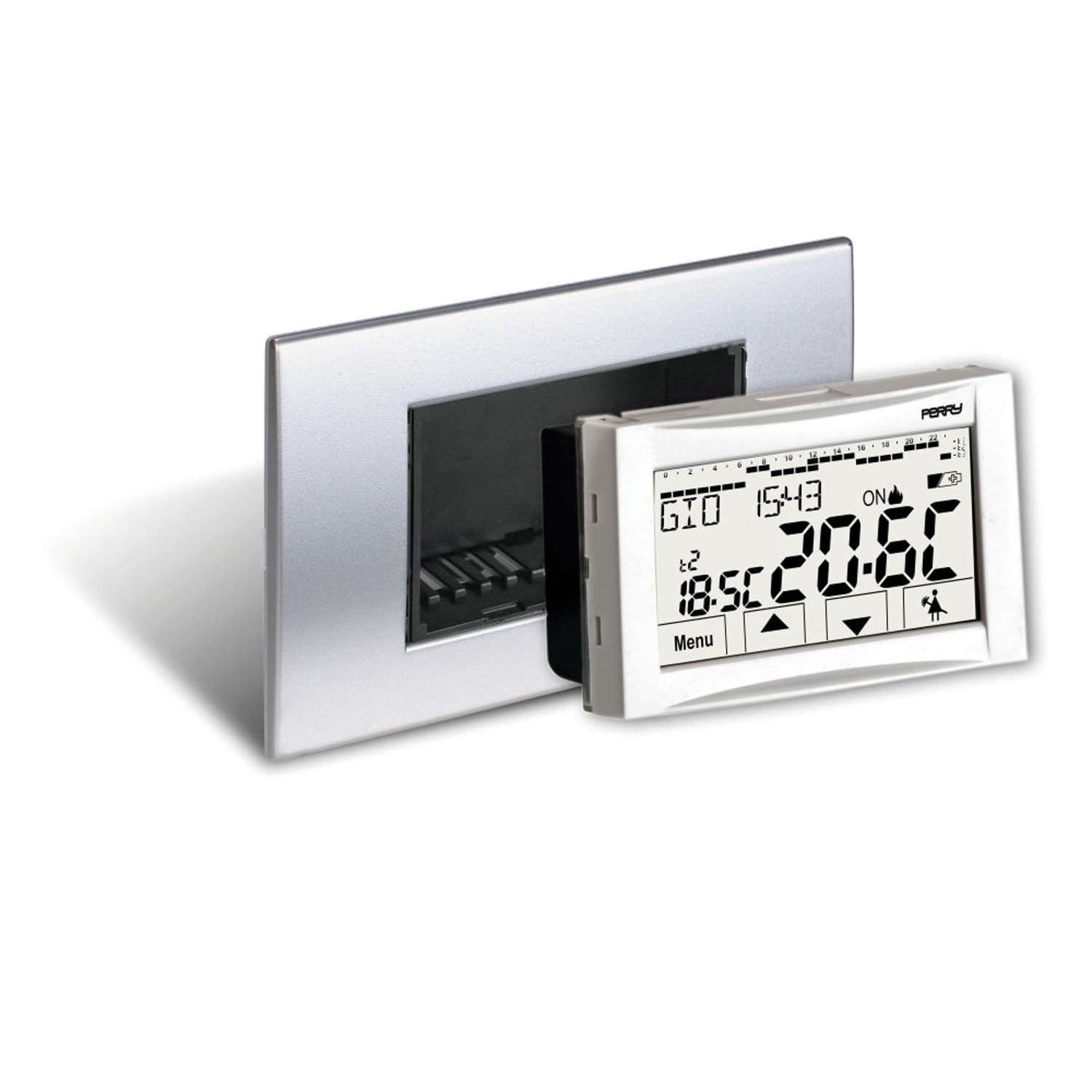

Perry Chronothermostat For Weekly Installation Perry-1CRCDS26
Perry-1crcds26 Built-in Weekly Chronothermostat With Batteries Moon Series Touch Screen Backlit Display, 3 Temperature Levels _ Antifreeze 4 Preset Programs That Can Be Modified Cleaning Suspension Key Weekly Chronothermostat On Offer
CHRONO SETT INC MOON 3VCC TOUCH SCR
Price List
Eur. 161,04
Price MPCshop
Eur. 95,86
Available
309 Pcs Estimated Delivery in 7 working days
All prices are VAT included
Bullet points Perry Perry-1CRCDS26

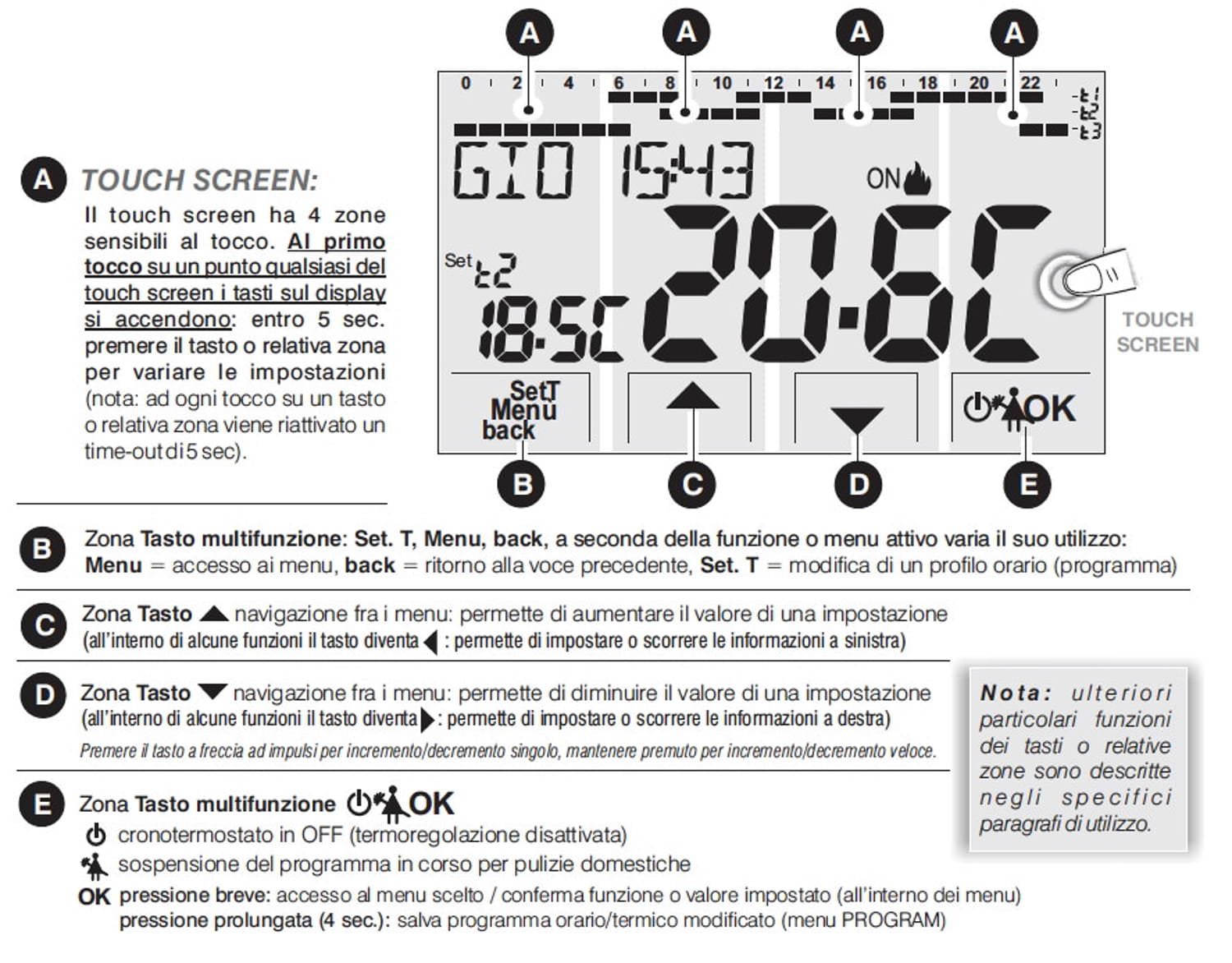

Chronothermostat for weekly installation with multilingual menu - Power supply 3V - 2x1.5V AA alkaline - Backlit LCD display TOUCH SCREEN - Equipped with three front panels included in the package - Password user and installer Chronothermostat with anti-limescale cycle function \ Chronothermostat with echo operation: the chronothermostat anticipates the shutdown by exploiting the thermal inertia of the system, allowing a significant saving of energy Flush-mounted chronothermostat with cleaning suspension key: allows to stop, for a preset time, the operation of the system Holiday program: for those who leave home for several days, are provided with the functions \ Flush-mounted chronothermostat Temperature set block: for systems intended for second homes, public environments, hotels, offices
Perry 1crcds26 Weekly Recessed Chronothermostat Touch Screen Display
weekly recessed chronothermostat batteries perry temperature lock suspension button cleaning lcd backlit display
Customers Reviews Perry Perry-1CRCDS26
Stefano G Data: 9 January 2019 I bought two devices to place in the living area and the sleeping area. The installation in a 503 was very easy and the adaptability with BTicino's Matix series was perfect. The devices are quite easy to set up even if you have to waste some time, but after all you only do it once.
Valeria Data: 12 February2019 The seller was exemplary, to say the least. So was the TNT courier
Paolo V Data: 2 May 2018 Exactly what I was looking for, a thermostat with a clearly visible display, the programming is quite simple, it promises a good battery life, it can work both ON/OFF and proportional, the latter avoids temperature changes. Excellent product from a very good supplier.

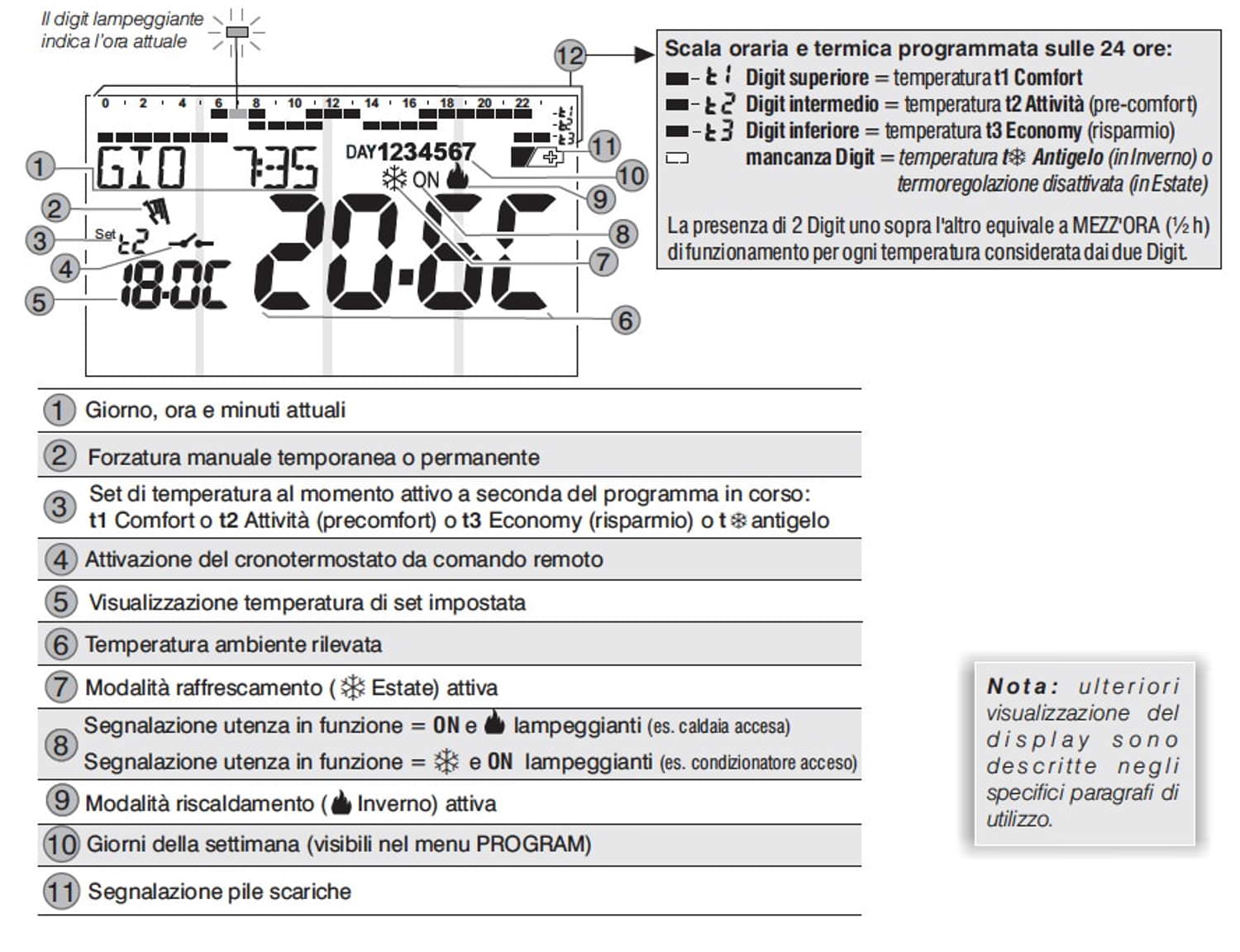

II weekly chronothermostat a Perry 1CRCDS26, suitable for all heating and/or cooling systems, it is equipped with a clear backlit TOUCHSCREEN display to keep all its functions under control in real time. The chronothermostat is pre-programmed in the factory, therefore, immediately after connection and insertion of the batteries, it is ready for immediate use, displaying the current date and time (automatic solar/legal time change: "EURO") and with a standard thermal/time profile in Winter mode (heating). Ease of use through menu navigation is the key feature, in fact, despite the completeness of its functions, it is very easy to use. In its permanent memory are already set 2 winter programs and 2 summer programs with 3 levels of antifreeze temperature designed to offer maximum comfort, but just a few seconds to change them and choose the desired temperatures throughout the day (even every 30 minutes!) and for every day of the week. The factory-fitted chronothermostat adjusts the temperature in Differential ON/OFF mode and the hysteresis can be set from 0.2°C to 1.2°C to adapt to the thermal inertia of your specific system - alternatively you can select the operation in Proportional modulating mode with adjustable duration cycles (from 7 to 20 minutes): this system allows to keep the desired temperature more stable, increasing the feeling of comfort for the user and is particularly suitable for systems with high thermal inertia such as, for example, for underfloor radiant panels. The set temperature scale is in Centigrade (Celsius) with the possibility to calibrate the room temperature measurement by setting a correction value (from -3 to 3 °C) - switching to Fahrenheit degrees all temperature displays are updated according to the new scale. A separate remote temperature probe can be connected to the chronothermostat (optional) and then set it according to your system requirements: remote, floor, outdoor. A particular attention has been paid to energy saving: temporary or permanent manual forcing with temperature SET independent from the current weekly program, the holiday program, the suspension for domestic cleaning, the optional block of set temperatures (MAX/MIN), the value of the adjustable antifreeze temperature, the control through an external contact (eg. optional telephone programmer), allow to avoid energy wastage with consequent economic saving
Chrono thermostat battery power points - Multilingual menu - 3V - 2x1 power supply.5V AA alkaline - LCD backlit TOUCH SCREEN display - Equipped with three front panels included in the package - User and installer password - Anti-scale cycle: with the pump activation function the chronothermostat automatically starts the pump or valve device for two minutes every day, even during periods of suspension, to avoid incrustations and seizures possible after prolonged inactivity. In this way, any risk is eliminated when the system is reactivated - Eco operation: the chronothermostat anticipates shutdown by exploiting the thermal inertia of the plant, allowing a considerable saving of energy - Cleaning suspension button: it allows to stop, for a preset time, the operation of the system. Without waste and in all simplicity, just press the button with the cleaning suspension symbol and on the screen the segments disappear in correspondence of the two hours starting from the current one: system off - Temperature set block: for systems intended for second homes, public environments, hotels, offices, as well as the domestic environment, where it is necessary to set the minimum and maximum temperatures for the thermoregulation of the rooms to avoid heat theft (minimum temperature) and/or heat waste (maximum temperature) - Holiday program: for those who are away from home for several days, there are Countdown or Weekend functions that suspend the operation of the chronothermostat for a preset period of time, keeping the temperature at antifreeze level

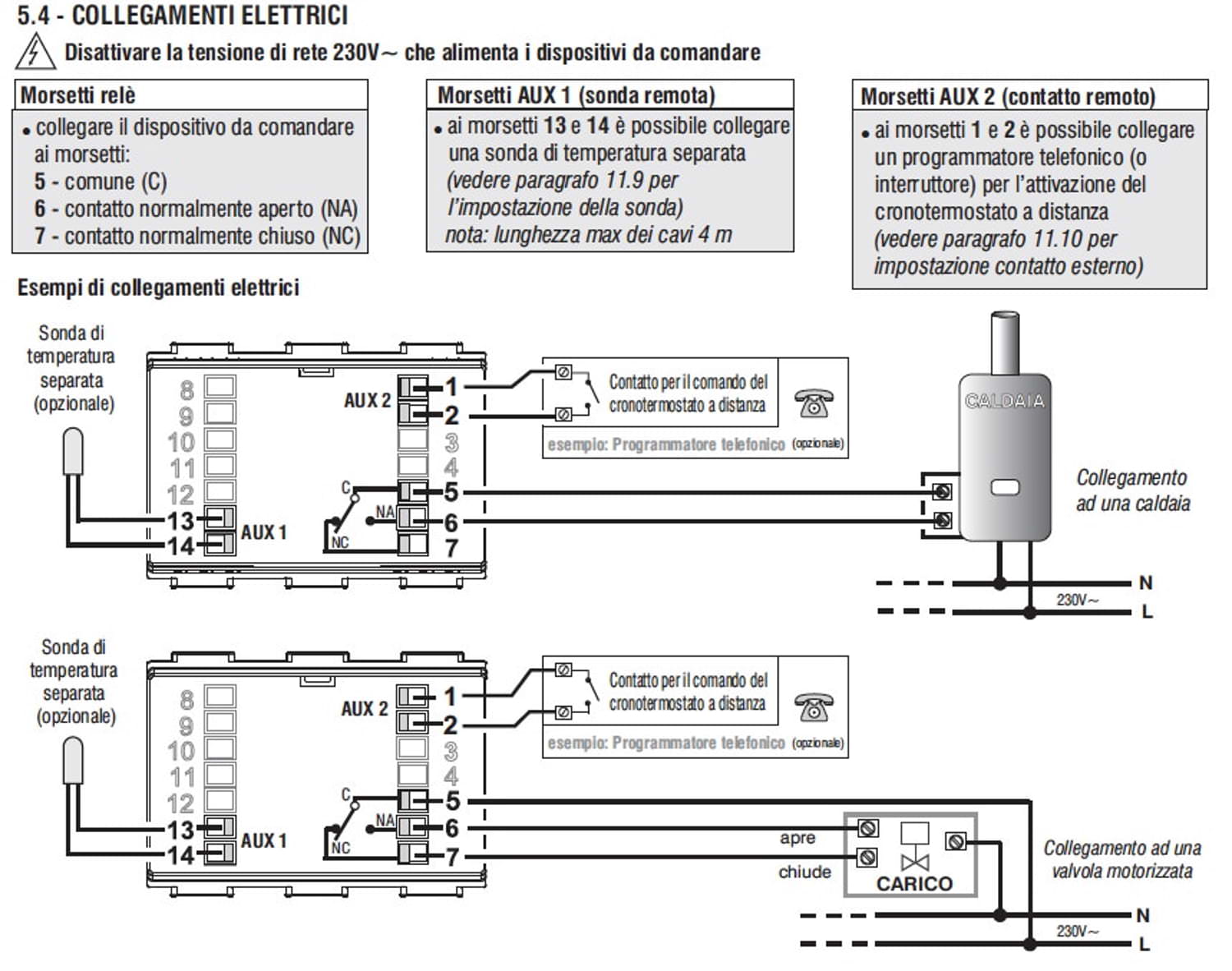

Characteristics of the Perry chronothermostat Multilingual menu 3V - 2x1 power supply.5V AA alkaline Lcd backlit display TOUCH SCREEN Potential-free deviation 1 contact output: 5(3)A/250Vac.a. On/Off operation with differential adjustable from 0.2 - 1.2°C or modulating with control period from 7-20 min 4 preset programs that can be modified Temperature levels 3 antifreeze Automatic manual temperature Adjustable temperature for set of 0.1°C Minimum 30 min Permanent / temporary manual operation Automatic daylight saving time change Suspension button for cleaning Telephone or remote control input EAST/INV control Holiday program Activation program pump Temperature set block User password Installer password Timed backlighting Relay status indication Correction t detection in operation Product positioning Flush mount Adjustment range 5 - 37,7°C Dimensions (WxDxH) 65 x 53 x 47 mm In-built chronothermostat 503
Perry-1crcds26 Built-in Weekly Chronothermostat With Batteries Moon Series Touch Screen Backlit Display, 3 Temperature Levels _ Antifreeze 4 Preset Programs That Can Be Modified Cleaning Suspension Key Weekly Chronothermostat On Offer
CHRONO SETT INC MOON 3VCC TOUCH SCR
Price MPCshop
Eur. 95,86
Available
309 Pcs Estimated Delivery in 7 working days
All prices are VAT included
Bullet points Perry Perry-1CRCDS26
Chronothermostat for weekly installation with multilingual menu - Power supply 3V - 2x1.5V AA alkaline - Backlit LCD display TOUCH SCREEN - Equipped with three front panels included in the package - Password user and installer Chronothermostat with anti-limescale cycle function \ Chronothermostat with echo operation: the chronothermostat anticipates the shutdown by exploiting the thermal inertia of the system, allowing a significant saving of energy Flush-mounted chronothermostat with cleaning suspension key: allows to stop, for a preset time, the operation of the system Holiday program: for those who leave home for several days, are provided with the functions \ Flush-mounted chronothermostat Temperature set block: for systems intended for second homes, public environments, hotels, offices
Data: 9 gennaio 2020 Ho comprato due dispositivi da posizionare in zona giorno e zona notte. L'installazione in una 503 è stata semplicissima e l'adattabilità con la serie Matix di BTicino perfetta. I dispositivi sono abbastanza semplici da configurare anche se bisogna perdere un pò di tempo, ma del resto si fa una volta sola.
Data: 12 febbraio2019 Il venditore è stato a dir poco esemplare. Così come il corriere
Data: 2 Maggio 2022 Esattamente quello che cercavo, un termostato con display ben visibile, la programmazione è abbastanza semplice, promette una buona durata della batteria, può funzionare sia in ON/OFF che in proporzionale, quest'ultimo evita gli sbalzi di temperatura . Ottimo prodotto da ottimo fornitore.
II cronotermostato settimanale a batterie Perry 1CRCDS26, adatto a tutti gli impianti di riscaldamento e/o raffrescamento, è dotato di un chiaro display TOUCHSCREEN retroilluminato per tenere sotto controllo tutte le sue funzioni in tempo reale. Il cronotermostato è pre-programmato in fabbrica, quindi, subito dopo il collegamento e l’inserimento delle pile, è pronto per l’utilizzo immediato, visualizzando data e ora attuali (cambio ora solare/legale automatico: «EURO») e con profilo termico/orario standard nella modalità Inverno (riscaldamento). La facilità di utilizzo tramite navigazione a menù è la caratteristica fondamentale, infatti, nonostante la completezza delle sue funzioni, è facilissimo da usare. Nella sua memoria permanente sono già impostati 2 programmi invernali e 2 estivi con 3 livelli di temperatura+ antigelo studiati per offrire il massimo del comfort, ma bastano pochi secondi per modificarli e scegliere le temperature desiderate lungo tutto l’arco della giornata (anche ogni 30minuti!) e per tutti i giorni della settimana. Il cronotermostato di fabbrica, regola la temperatura in modo Differenziale ON/OFF e l’isteresi è impostabile da 0,2°C a 1,2°C per adattarsi all’inerzia termica del Vostro specifico impianto - in alternativa è possibile selezionare il funzionamento in modo Proporzionale modulante con cicli di durata impostabili (da 7a 20 minuti): questo sistema permette di mantenere più stabile la temperatura desiderata, aumentando la sensazione di comfort per l’utente ed è particolarmente adatto per gli impianti con alta inerzia termica come, ad esempio, per i pannelli radianti sottopavimento. La scala di temperatura impostata è in gradi Centigradi (Celsius) con la possibilità di calibrare la misurazione della temperatura ambiente impostando un valore di correzione (da -3 a +3 °C) - passando ai gradi Fahrenheit tutte le visualizzazioni di temperatura vengono aggiornate secondo la nuova scala. Al cronotermostato è possibile collegare una sonda di temperatura separata remotabile (in opzione) e successivamente impostarla secondo le proprie esigenze di impianto: remota, a pavimento, esterna. Particolare attenzione è stata riservata al risparmio energetico: la forzatura manuale temporanea o permanente con SET di temperatura autonomo dal programma settimanale in corso, il programma Ferie, la sospensione per pulizie domestiche, il blocco opzionale delle temperature di Set impostate (MAX/MIN), il valore della temperatura antigelo regolabile, il comando tramite un contatto esterno (es. programmatore telefonico in opzione), consentono di evitare sprechi di energia con conseguente risparmio economico
PUNTI DI FORZA del cronotermostato a batterie • Menù multilingua • Alimentazione 3V – 2x1.5V AA alkaline • Display Lcd retroilluminato TOUCH SCREEN • Dotato di tre frontalini inclusi nella confezione • Password utente e installatore • Ciclo anticalcare: con la funzione “attivazione pompa” il cronotermostato provvede automaticamente per due minuti ogni giorno, anche nei periodi di sospensione, all’avvio del dispositivo pompa o valvola, per evitare incrostazioni e grippaggi possibili a seguito di prolungata inattività. Si elimina così ogni rischio al momento della riattivazione dell’impianto • Funzionamento eco: il cronotermostato anticipa lo spegnimento sfruttando l`inerzia termica dell`impianto, consentendo un notevole risparmio di energia • Tasto sospensione pulizie: permette di arrestare, per un tempo prestabilito, il funzionamento dell’impianto. Senza spreco e in tutta semplicità, basta premere il tasto con il simbolo “sospensione pulizie” e sullo schermo scompaiono i segmenti in corrispondenza delle due ore a partire da quella attuale: impianto spento • Blocco set temperature: per impianti destinati a seconde case, ambienti pubblici, alberghi, uffici, oltre che all’ambiente domestico, dove risulta essere necessario fissare le temperature di minima e di massima per la termoregolazione degli ambienti per evitare furti di calore (temperatura minima) e/o sprechi di calore (temperatura massima) • Programma vacanza: per chi si assenta da casa per più giorni, sono previste le funzioni “Countdown” o “Weekend” che sospendono il funzionamento del cronotermostato per un arco di tempo prestabilito, mantenendo la temperatura a livello antigelo
CARATTERISTICHE del cronotermostato Perry Menù multilingua Alimentazione 3V – 2x1.5V AA alkaline Display Lcd retroilluminato TOUCH SCREEN Uscita 1 contatto in deviazione libero da potenziale: 5(3)A/250Vc.a. Funzionamento ON/OFF con differenziale regolabile da 0.2 – 1.2°C o modulante con periodo di controllo da 7-20 min 4 programmi preimpostati modificabili Livelli temperatura 3 + antigelo Temperatura manuale autonoma Temperatura regolabile per set di 0.1°C Programmazione minima 30 minuti Funzionamento manuale permanente / temporaneo Cambio automatico ora legale Tasto sospensione per pulizie Ingresso comando telefonico o remoto Comando EST/INV Programma Vacanze Programma attivazione pompa Blocco set temperature Password utente Password installatore Retroilluminazione temporizzata Indicazione stato relè Correzione t rilevamento in funzione posizionamento del prodotto Montaggio ad incasso Campo di regolazione 5 - 37,7°C Dimensioni (LxPxH) 65 x 53 x 47 mm Cronotermostato incasso 503
Perry 1CRCDS21 chronothermostat for weekly installation Perry 1CRCDS26
Details Perry Perry-1CRCDS26
Power supply
3V - 2x1.5V AA alkaline
Programming Type
Weekly magazine
Type Installation
Cash on delivery
Display Type
LCD Touch Screen Display
Temperature levels
3 + antifreeze
Minimum programming
30 minutes
Automatic daylight saving time changeover
Yes
Suspension button for cleaning
Yes
EAST / INV command
Yes
Holiday Program
Yes
Pump activation program
Yes
Telephone or remote control input
Yes
User and installer password
Yes
Assembly
Cash on delivery
Setting range
5 - 37,7°C
Exit
5(3)A/250Vc.a.
Backlighting
Yes
How it works
Permanent / temporary manual
Temperature blocking
Yes
Color
White

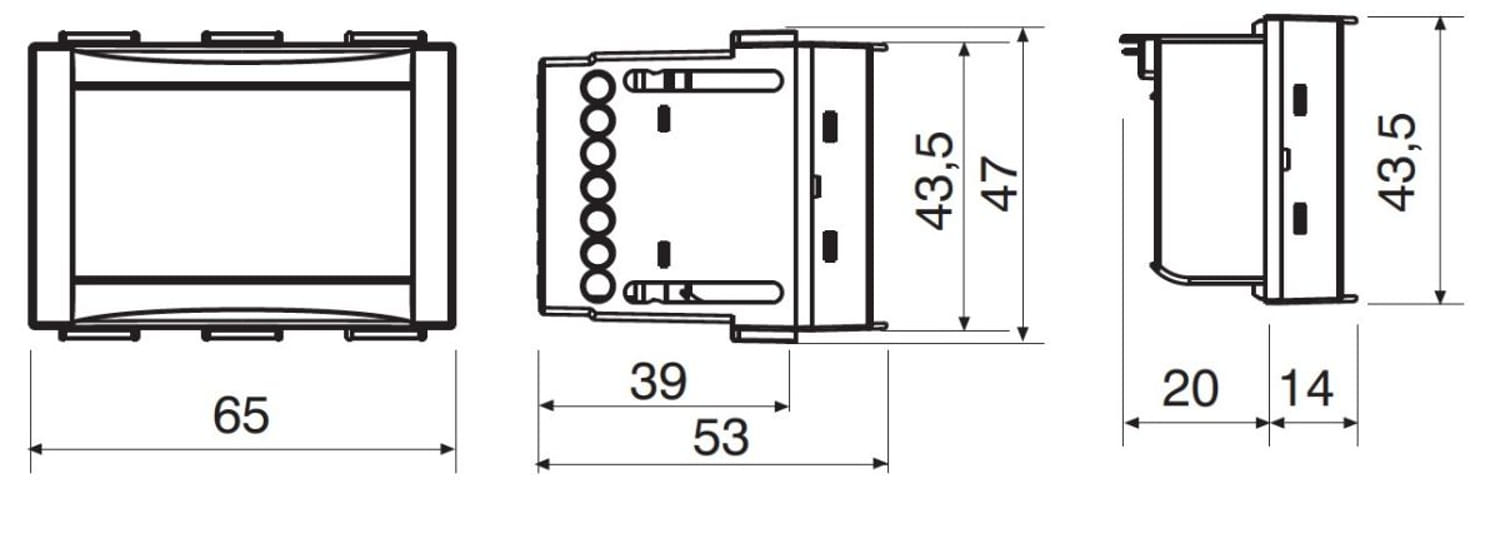

Measures
4,7x5,3x6,5
Weight
0
Barcode
8019108090938
Country of production
Italy
Vendor code
1CRCDS26
Comment
CHRONO SETT INC MOON 3VCC TOUCH SCR
Brand
Perry
CUSTOMER QUESTIONS AND ANSWERS
Question:
Is it possible to enter a password in the chronothermostat?
Reply:
Yes, it is possible, this inhibits the use of user and/or installer functions of the chronothermostat. 30/10/2020 15:53:53
Question:
good morning, I wanted to know if this chronothermostat is compatible with BTICINO plates
Reply:
Good morning to you, this device can be installed with BITICINO plates of the series:- AXOLUTE: white/anthracite-tech- AXOLUTE AIR: white/anthracite/tech- LIVING - LIGHT - LIGHT TECH- LIVINGLIGHT: anthracite/white/tech - MATIX- LIVINGLIGHT AIR: anthracite/white/tech 21/10/2020 15:32:07
