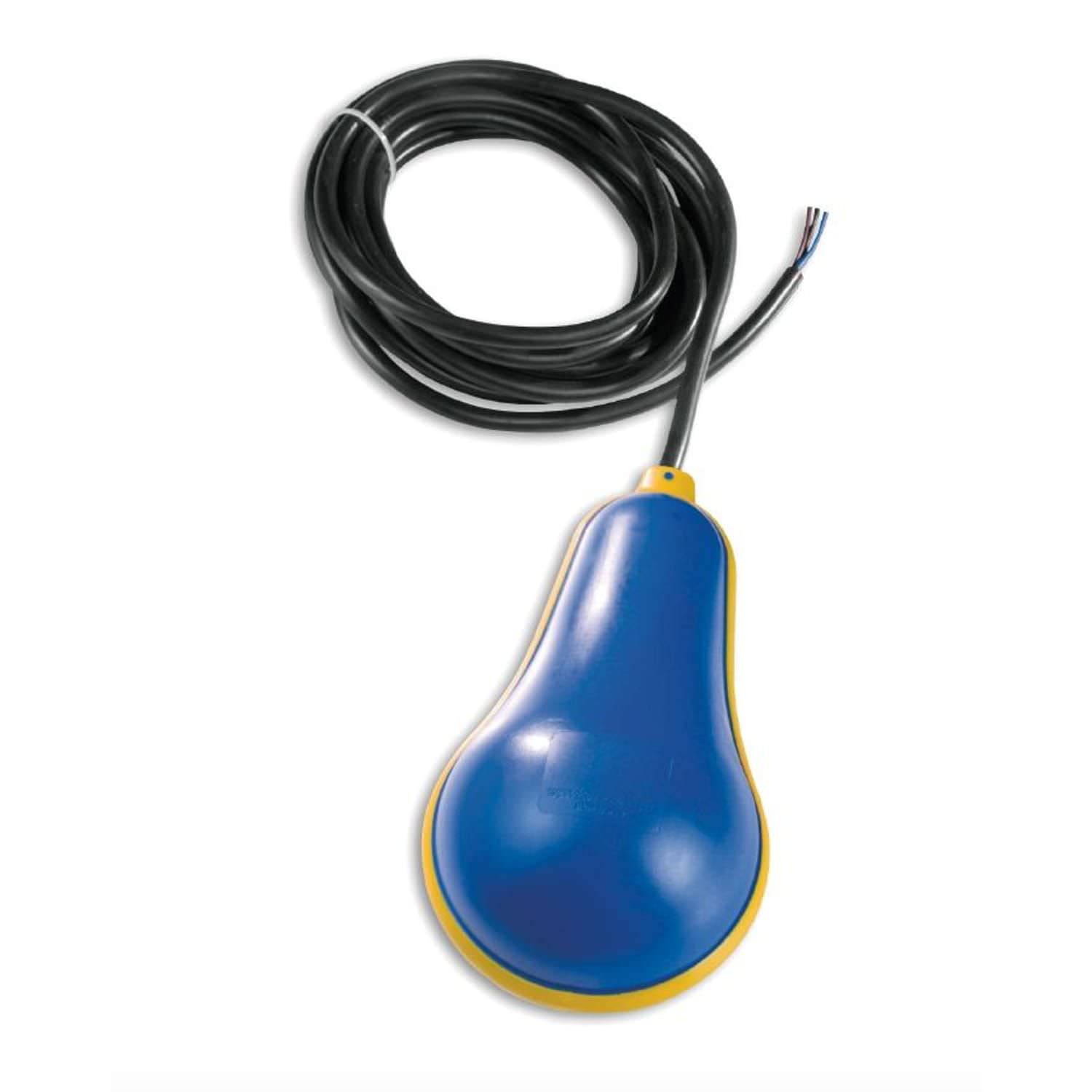

Perry Waste Water Level Regulator Perry-1CLRLG12-20PVC
Float Level Regulator For Sewage Electromechanical Cable Pvc 3x1 20m Perry-1clrlg12-20pvc Submersible Level Regulator Tipping Body In Molten Polypropylene At High Pressure To Ensure a Perfect Seal Seepage
PVC FLOATING REGULATOR 20MT
Price List
Eur. 119,07
Price MPCshop
Eur. 115,92
Available
19 Pcs Estimated Delivery in 6 working days
All prices are VAT included
Bullet points Perry Perry-1CLRLG12-20PVC
Float level regulator for sewage electromechanical MAC5 series PVC cable 3x1 20 m Submersible tipping level regulator Electric flow rate 10(8) A 250V MAX temperature of use 50° C Resistance to pressure 2 BAR Degree of protection IP68 tested at a depth of 1 m for a period of 7 days, water temperature 50° C
Perry 1clrlg12 20pvc Electromechanical Dark Water Float Level Regulator
float level regulator electromechanical dark water switch pvc submersible tilting polypropylene
Customers Reviews Perry Perry-1CLRLG12-20PVC
Corrado Data: 21 September 2020 Precise floating level regulator put in place for the condominium sewage system
Giorgio R Data: 24/01/2021 Excellent float regulator. I used it in an area with a lot of dark water and it worked perfectly. Sturdy and well made, especially considering the difficult conditions in which I used it.
Alessio Data: 16/09/2023 Perfect for dark water. I had no problems with sewage-laden water or residue. It is durable and seems made to last. I recommend it for those with similar needs to mine.

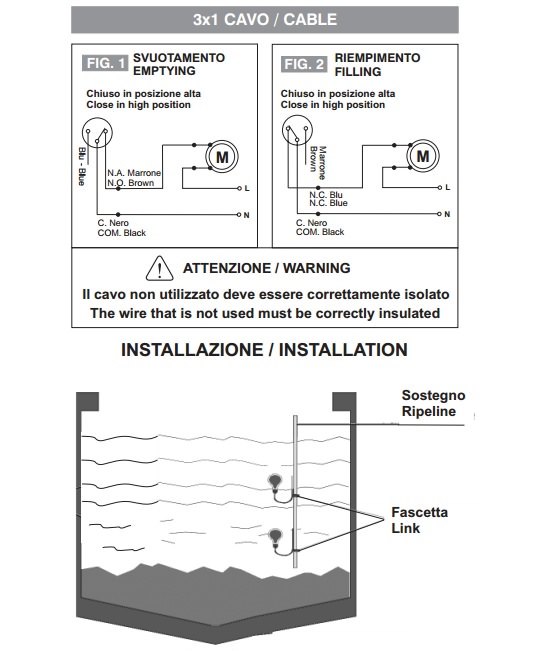

Font size="2" face="Verdana, Arial, Helvetica, sans-serif"> Electromechanical dark water float level regulator MAC5 series 3x1 PVC cable 20m Perry 1CLRLG12 20PVC is a submerged tilting level regulator. Its essential characteristic is to have a heavy, voluminous and without roughness body that enhances its use in sewage, industrial waters with residues of agglomerates in suspension and in turbulent waters. This regulator consists of a casing inside which a float switch is positioned and counterweighted so that as the level increases, the position of the regulator itself is reversed. When the level drops, the opposite tilting occurs. The body is made of high pressure cast polypropylene to guarantee a perfect seal against infiltration.
Technical features Electric flow rate 10(8) A 250V Max temperature of use 50° C Pressure resistance 2 BAR Protection degree IP68 tested at a depth of 1 m for a period of 7 days, water temp 50° C
Level regulator for sewage PVC cable 20 m Perry Perry 1CLRLG12/20PVC
Float Level Regulator For Sewage Electromechanical Cable Pvc 3x1 20m Perry-1clrlg12-20pvc Submersible Level Regulator Tipping Body In Molten Polypropylene At High Pressure To Ensure a Perfect Seal Seepage
PVC FLOATING REGULATOR 20MT
Price List
Eur. 119,07
Price MPCshop
Eur. 115,92
Available
19 Pcs Estimated Delivery in 6 working days
All prices are VAT included
Bullet points Perry Perry-1CLRLG12-20PVC
Float level regulator for sewage electromechanical MAC5 series PVC cable 3x1 20 m Submersible tipping level regulator Electric flow rate 10(8) A 250V MAX temperature of use 50° C Resistance to pressure 2 BAR Degree of protection IP68 tested at a depth of 1 m for a period of 7 days, water temperature 50° C
Data: 21 settembre 2020 Preciso regolatore di livello galleggiante messo in opera per il sistema fognario del condominio
Data: 24/01/2021 Ottimo regolatore a galleggiante. L'ho usato in una zona con molte acque scure e ha funzionato perfettamente. Robusto e ben fatto, soprattutto considerando le condizioni difficili in cui l'ho usato.
Data: 16/09/2023 Perfetto per le acque scure. Non ho avuto problemi con l'acqua carica di fogna o con residui. È resistente e sembra fatto per durare. Lo consiglio per chi ha esigenze simili alle mie.
Regolatore di livello a galleggiante per acque scure elettromeccanico serie MAC5 cavo in PVC 3x1 da 20m Perry 1CLRLG12 20PVC è un regolatore di livello sommerso a ribaltamento. La sua caratteristica essenziale è quella di avere un corpo pesante, voluminoso e privo di asperità che ne esalta l’utilizzo in acque cariche di fogna, in acque industriali con residui di agglomerati in sospensione e in acque turbolente. Tale regolatore è costituito da un involucro all’interno del quale è posizionato un interruttore a galleggiante e contrappesato in modo che all’aumentare del livello si generi una inversione della posizione del regolatore stesso. In fase di discesa del livello si ha il ribaltamento opposto. Il corpo in polipropilene fuso ad alta pressione per garantire una perfetta tenuta alle infiltrazioni.
Caratteristiche tecniche Portata elettrica 10(8) A 250V Temperatura MAX di utilizzo 50° C Resistenza a pressione 2 BAR Grado di protezione IP68 testato alla profondità di 1 m per un periodo di 7 giorni, temp dell`acqua 50° C
Level regulator for sewage PVC cable 20 m Perry Perry 1CLRLG12/20PVC
Details Perry Perry-1CLRLG12-20PVC
Degree of protection
IP68
Temperature levels
Operation 0-50°C
Electrical flow rate
10(8) A / 250 V
Pressure resistance
2 BAR
Color
black
Measures
0
Weight
0
Barcode
8019108100255
Country of production
Italy
Vendor code
1CLRLG12/20PVC
Comment
PVC FLOATING REGULATOR 20MT
Brand
Perry
CUSTOMER QUESTIONS AND ANSWERS
Question:
Can I use it as a floating switch for the condo sewer?
Reply:
The device is specifically designed and engineered to work in sewage, taking into account that the maximum operating temperature is 50 °C. Paolo 2 settembre 2020
